TECHNICAL DETAILS
Model Pipe size
mm.		 Pipe size
 inch		 Force
 Kn.		 Cube
 m3		 Motor Control System Pipe Contact Number of shoes Package sizes Kg.
H B L
PIPC 20-22 Ø 508,00 Ø 558,80 20'' 22'' 1060 0,7 1 Wifi Steel 10x2
PIPC 24-26 Ø 609,60 Ø 660,40 24'' 26'' 1060 0,8 1 Wifi Steel 12x2
PIPC 28-28 Ø 660,40 Ø 711,60 26'' 28'' 1270 0,9 1 Wifi Steel 12x2
PIPC 28-30 Ø 711,60 Ø 762,00 28'' 30'' 1750 1,2 1 Wifi Steel 12x2
PIPC 30-32 Ø 762,00 Ø 812,80 30'' 32'' 1750 1,4 1 Wifi Steel 14x2
PIPC 32-34 Ø 812,80 Ø 863,60 32'' 34'' 2940 1,6 1 Wifi Steel 16x2
PIPC 32-36 Ø 812,80 Ø 914,40 32'' 36'' 2940 1,8 1 Wifi Steel 16x2
PIPC 34-36 Ø 863,60 Ø 914,40 34'' 36'' 2940 1,8 1 Wifi Steel 16x2
PIPC 36-38 Ø 914,40 Ø 965,00 36'' 38'' 2940 2 1 Wifi Steel 18x2
PIPC 36-40 Ø 914,40 Ø 1016,00 36'' 40'' 2940 2 1 Wifi Steel 18x2
PIPC 38-40 Ø 965,00 Ø 1016,00 38'' 40'' 2940 2,4 1 Wifi Steel 18x2
PIPC 40-42 Ø 1016,00 Ø1067,00 40'' 42'' 2940 2,4 2 Wifi Steel 18x2
PIPC 40-44 Ø 1016,00 Ø 1118,00 40'' 44'' 2940 3 2 Wifi Steel 20x2
PIPC 42-44 Ø1067,00 Ø 1118,00 42'' 44'' 2940 3,5 2 Wifi Steel 20x2
PIPC 46-48 Ø 1168,00 Ø 1219,00 46'' 48'' 2940 3,7 2 Wifi Steel 22x2
PIPC 46-50 Ø 1168,00 Ø 1270,00 46'' 50'' 4855 4 2 Wifi Steel 22x2
PIPC 48-50 Ø 1219,00 Ø 1270,00 48'' 50'' 4855 5,2 2 Wifi Steel 22x2

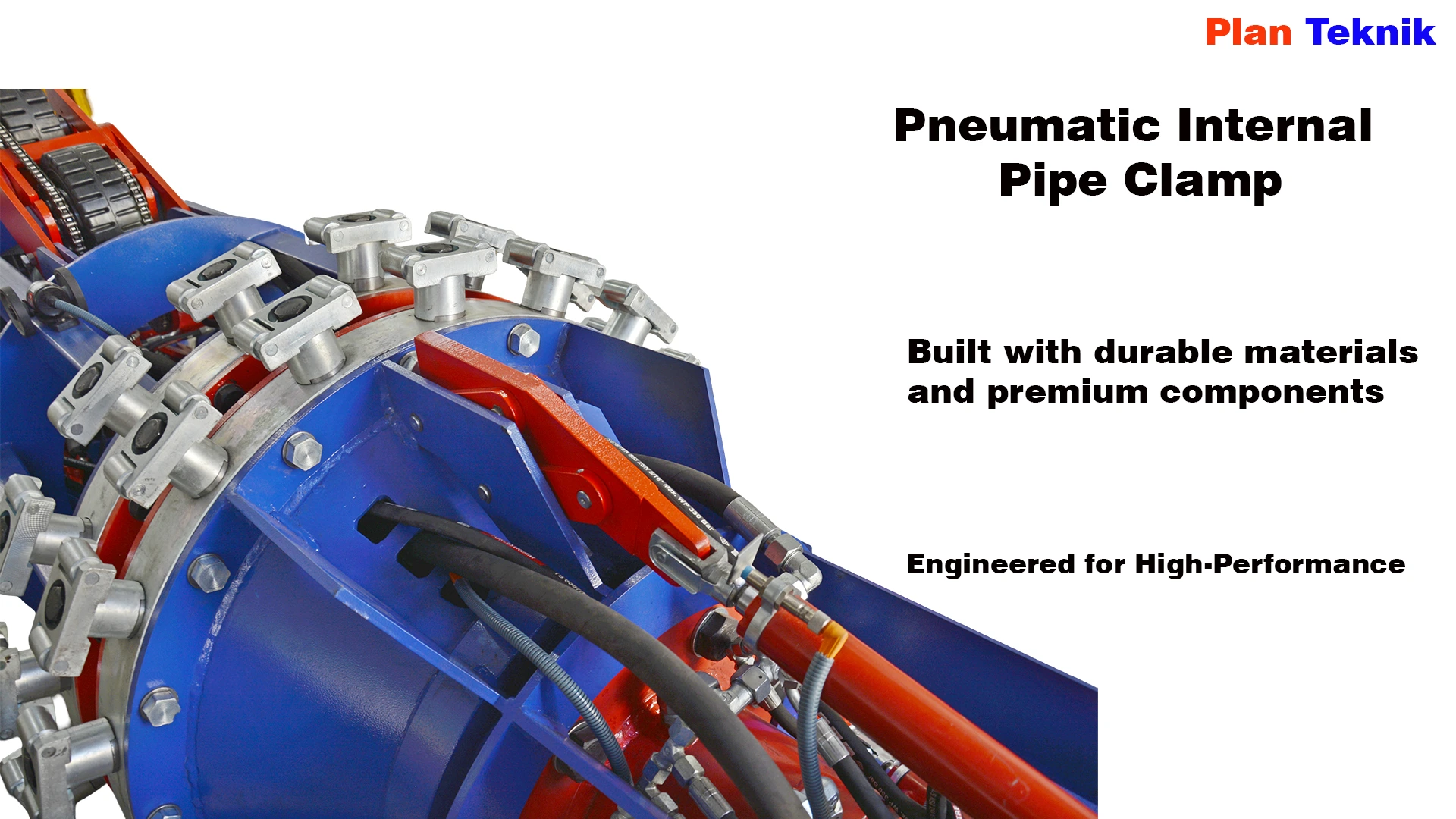

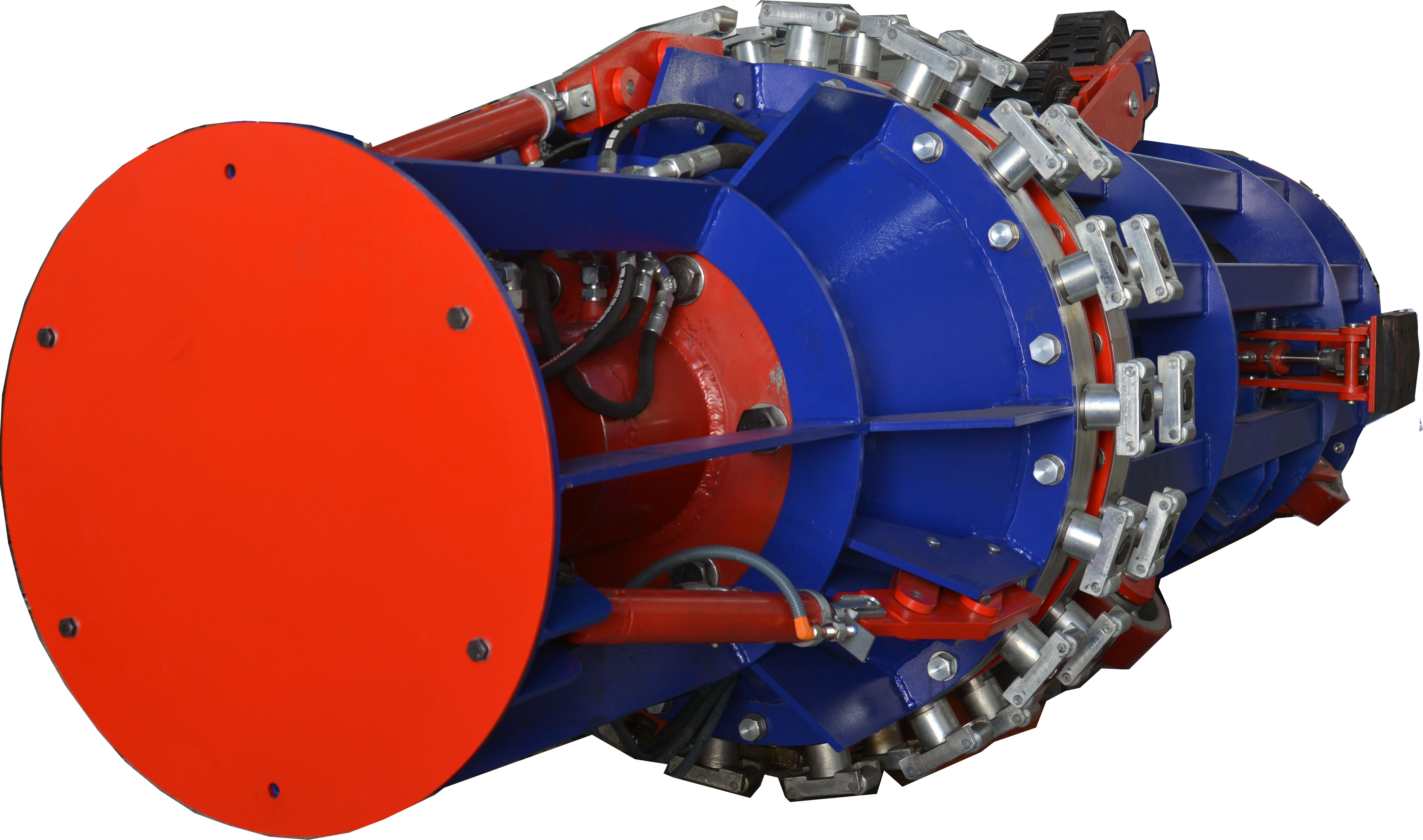

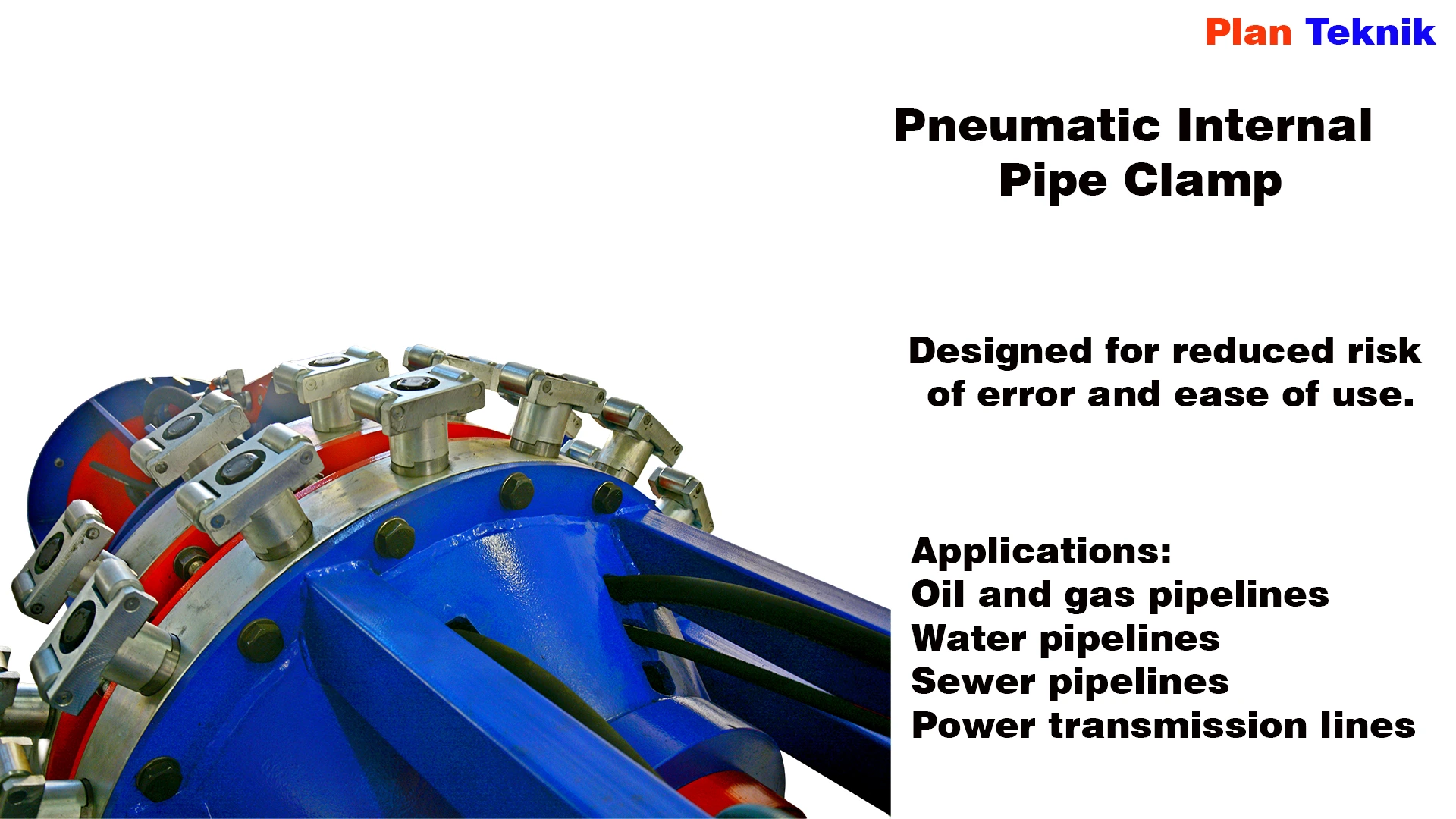

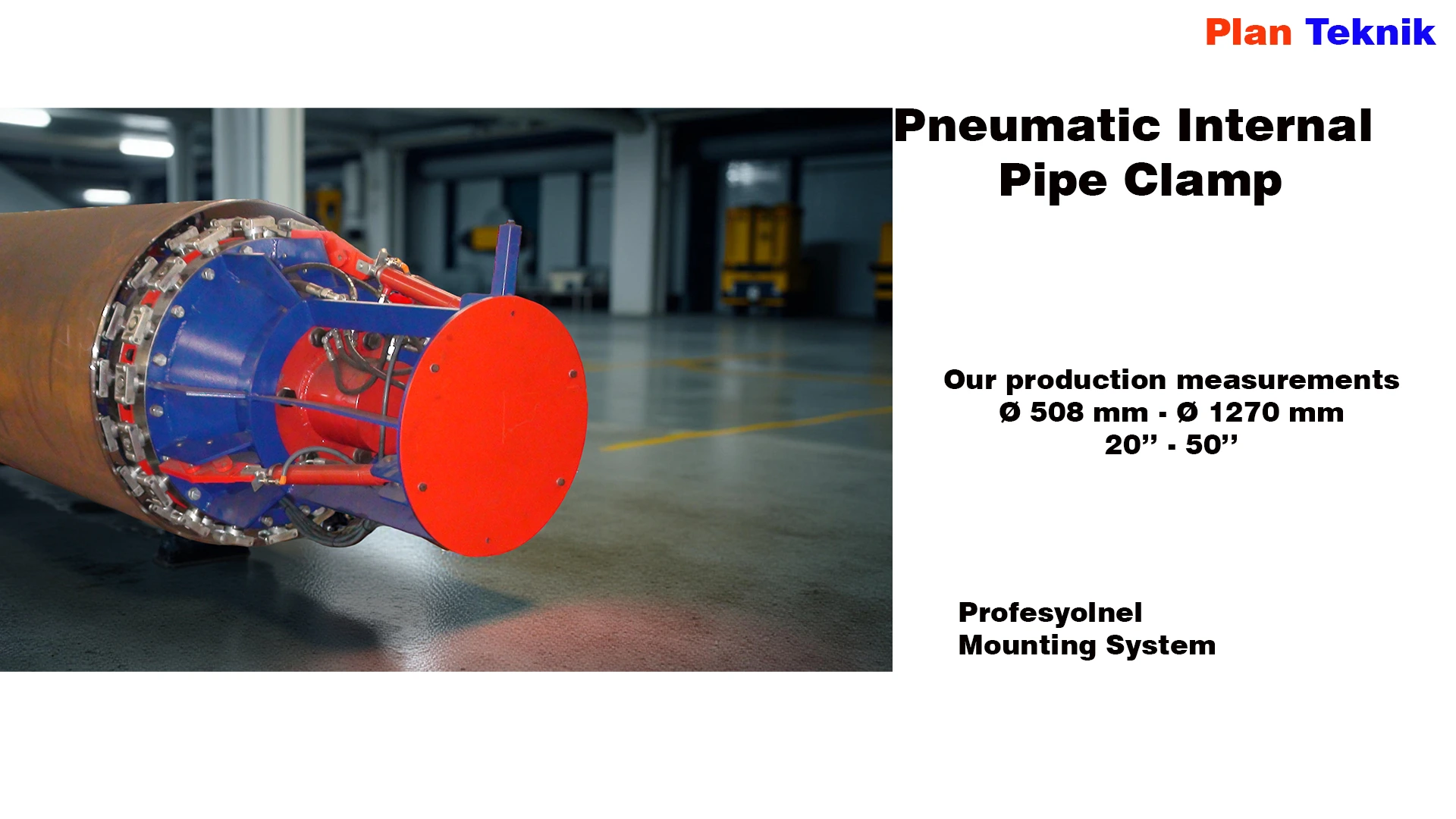

Pneumatic Internal Pipe Clamp

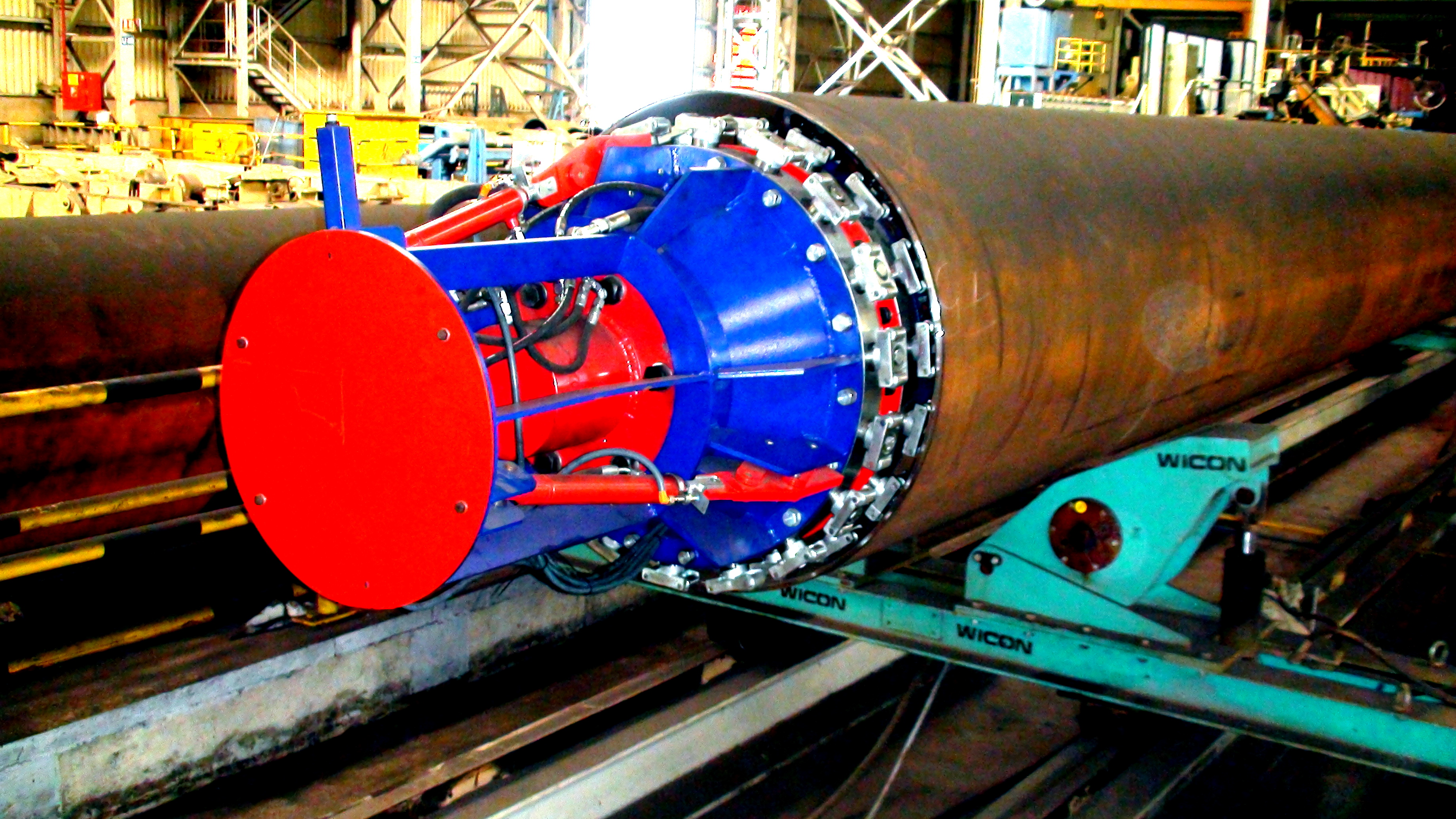

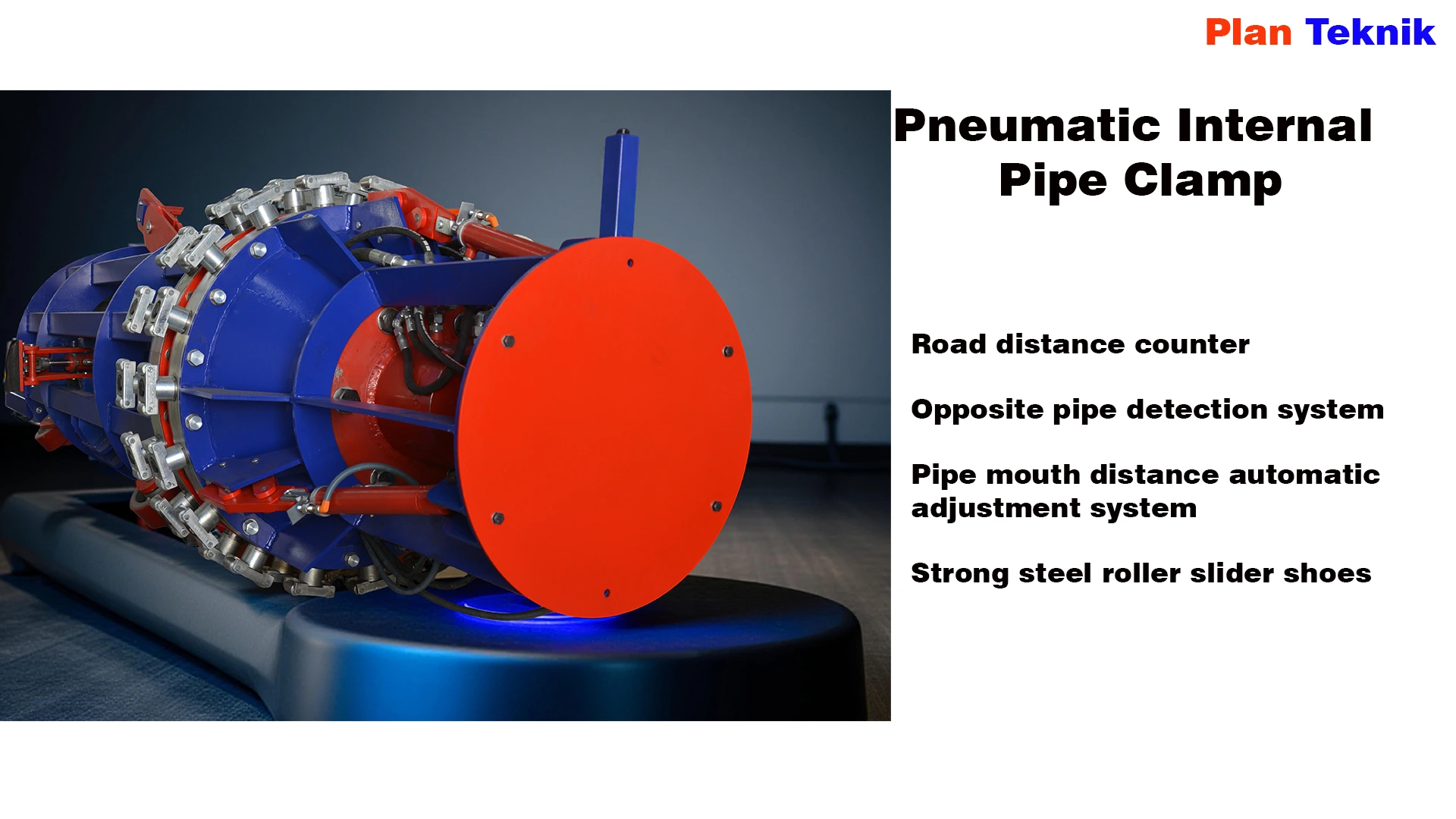

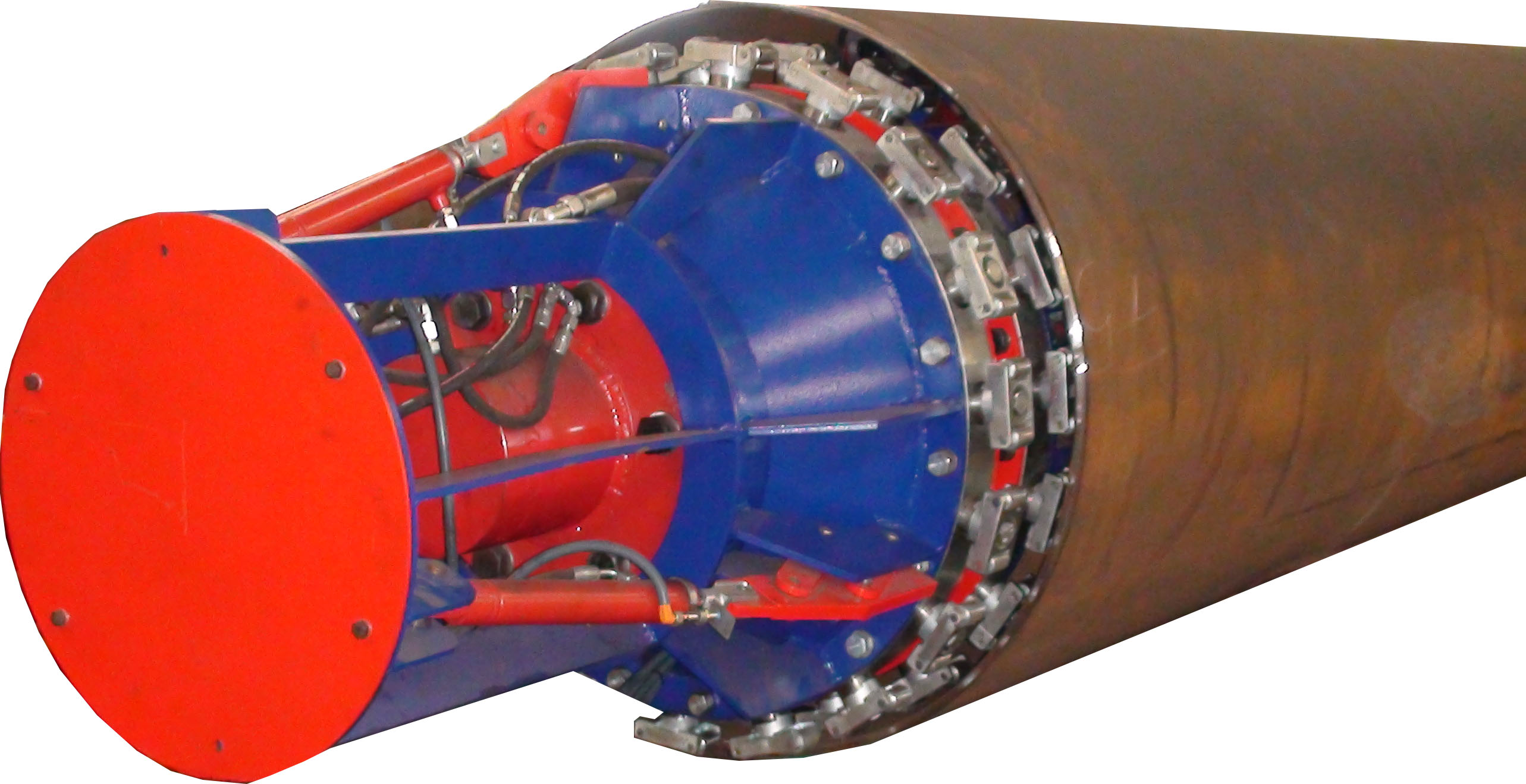

  • Pneumatic internal pipe clamp is an outward opening mechanism designed to apply a radial force out through the pipe.

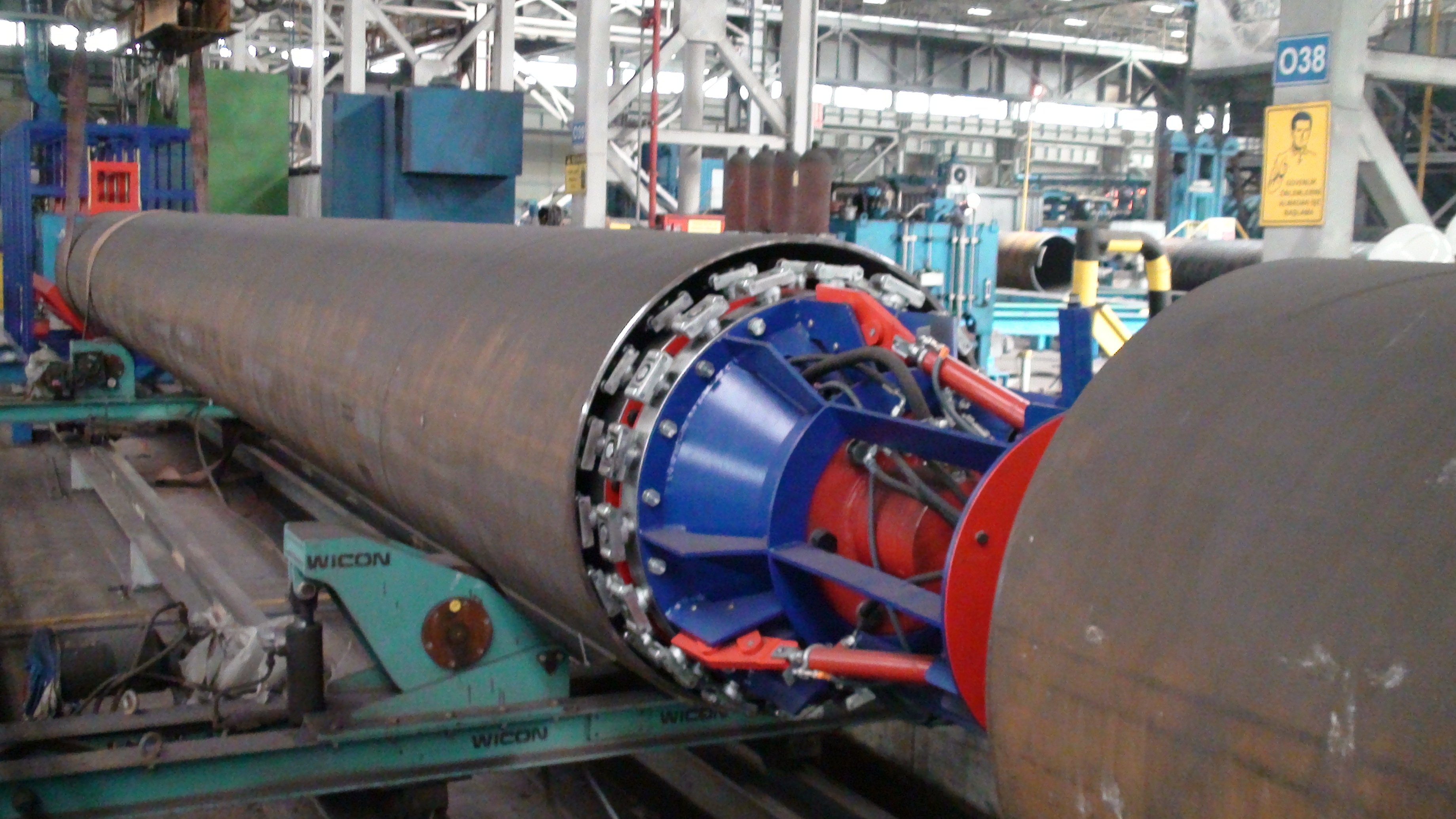

  • During the welding of the pipe; it allows the two pipe ends to be connected, aligned and the pipes are held in the same axis.

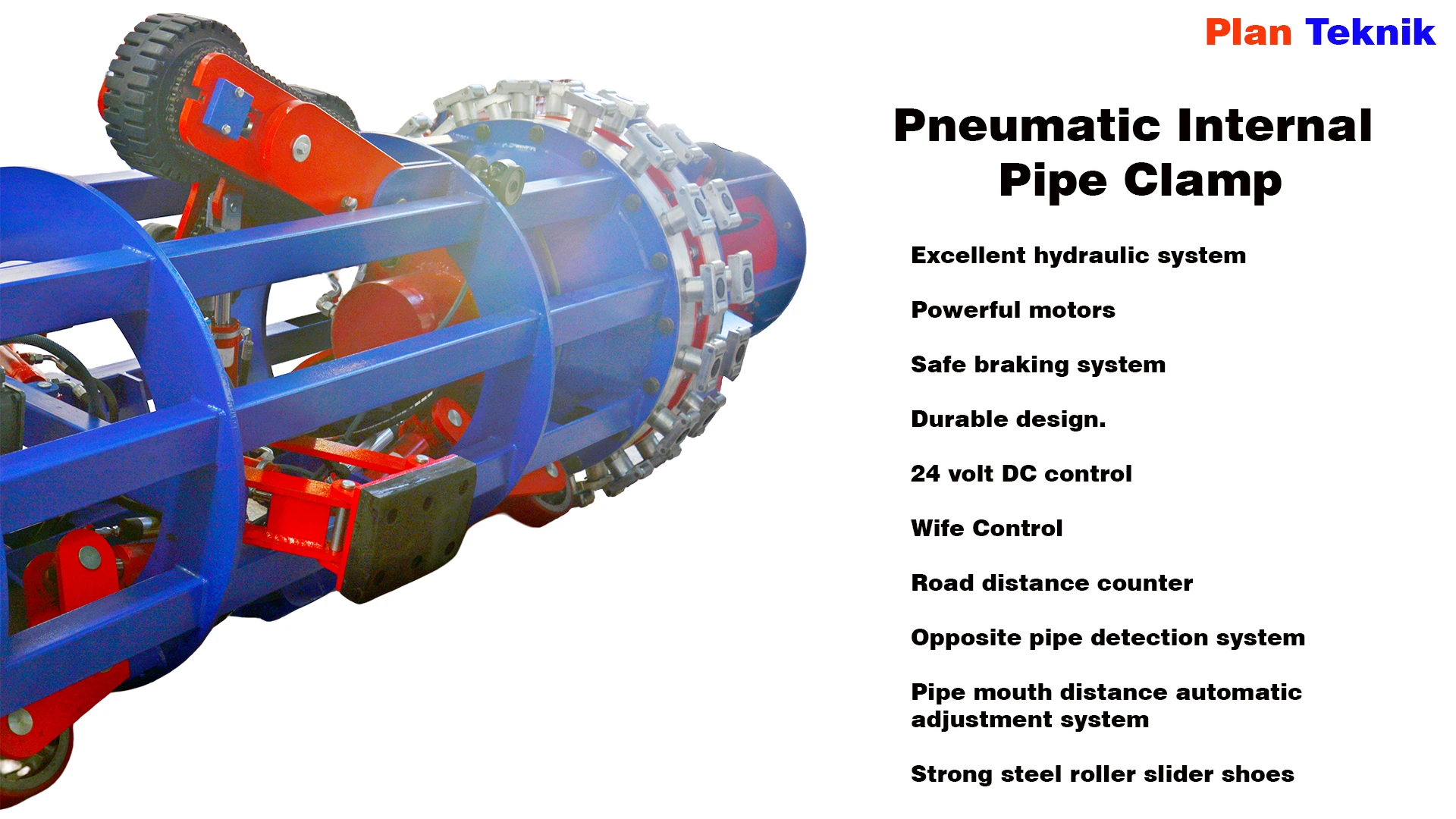

  • This clamp has two independent force mechanisms actuated by two double acting pistons.
  • The internal radial force given to the cylinders provides a force against the outside to provide a radial linear movement of the mechanism and the alignment is formed.
  • The pneumatic internal pipe clamp does movement in the pipe manually or with the motor movement.
  • Manually / automatically adjusts the brake pads to the inner walls of the pipe to stop movement of the internal clamp in the pipe.
  • Clamps can be used to lay thousands of kilometers of pipelines even in the most challenging terrain.
  • All models can operate in terrain slopes and special production is made for different terrain conditions.
  • These models are suitable for pipes that which the pipe thickness is up to 25mm.
