Technical Properties of Chain Clamp
1. It is optimal to use in building site, fabric and workshop and has a strong structure.
2. Is used to align and ensure correct assembly of interim fittings and branch elements as pipes, elbows, neck flange.
3. Chain clamp forms sensible alignment on multi points. Is used for pipes that’s alignment is between 10’’-120’’.
4. Is optimal for pipes which ave wall thickness’ are till to 25mm.
5. Simple and light weight design of tool allows quick movements and provides to be optimal for all sites and facilitates usage.
6. Is designed ergonomically for easy and quick use.
7. Can align and do axing pipes.
8. Can adjust openness distance of weld.
9. It reduces installation errors to a minimum.
10. Installation time is reduced by %60.
11. Provides safety connection. Has a wide range of use in varity diameter of pipes.
12. Prevents pipes, elbows and branch elements from damages during assembly.
13. Positive gripping during gripping process forms compression from out to inside.
14. Has sensible alignment property.
15. Providing force by screws during work, alignmnet/ positioning process could be done.
16. Chain clamp is formed of 7 parts.
• 1-chain
• 2-manuel chain tensioner
• 3-above chain link terminals/legs
• 4-chain wedge
• 5-elbow-T type fittings workholding
• 6-above chain contact terminals ( for only stainless steel models)
• 7-allen-key and force pipe
17. Spare parts are available.
18. Our products are produced by sensible laser and CNC technology.
19. covering and coloring of our products:
• Our products are galvanized with 40-60micron.
• Our products are colored with electro static powder paint that are between 80-120micron.
20. Our products have two year warranty.
For stainless steel pipes, the models will be S series (for ex. if your pipe is stainless steel your
clamp will be ZTBK-S or ZCBK-S and after this code please add your size as seen in the table).
Technical Specifications of the Chain Clamp
It is ideal for use on construction sites, in factories, and workshops, and has a strong structure.
It is used to ensure the alignment and correct installation of intermediate fittings and branching elements such as pipes, elbows, and neck flanges.
The chain clamp creates a logical alignment at multiple points. It is used for pipes with an alignment between 10'' and 120''.
It is ideal for pipes with wall thicknesses ranging from 8 mm to 50 mm.
The tool's simple and lightweight design allows for quick movements and makes it ideal for all construction sites, simplifying its use.
It is ergonomically designed for easy and fast use.
It can align pipe joint seams.
You can adjust the source-to-film distance.
Minimizes installation errors.
Installation time is reduced by 80%.
Provides a security connection.
It has a wide range of applications in pipes of various diameters.
Prevents damage to pipes, elbows, and branching elements during installation.
The positive grip created during the gripping process generates compression from the outside in.
It has sensitive alignment feature.
Alignment/positioning can be done by applying force with screws during operation.

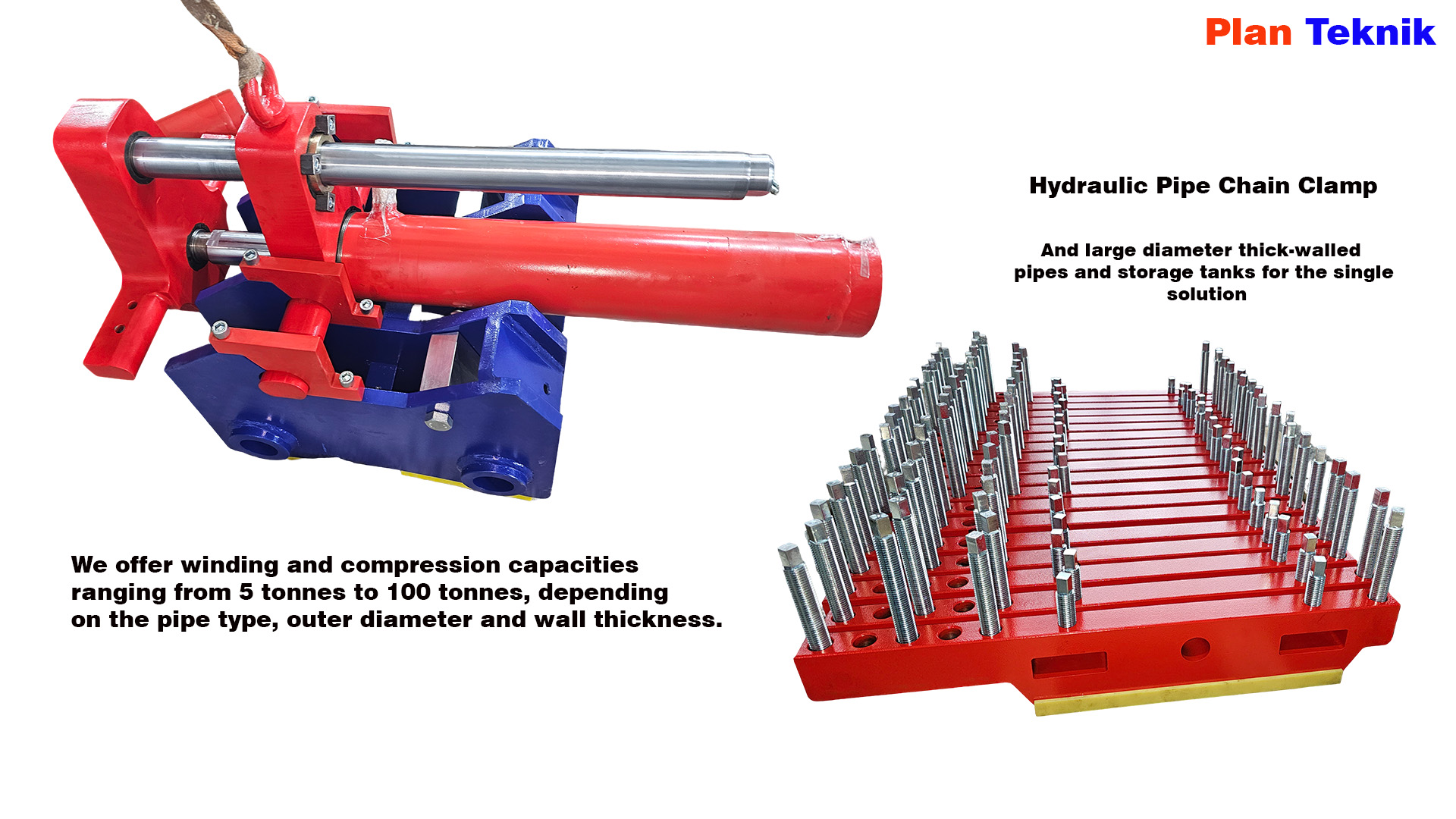

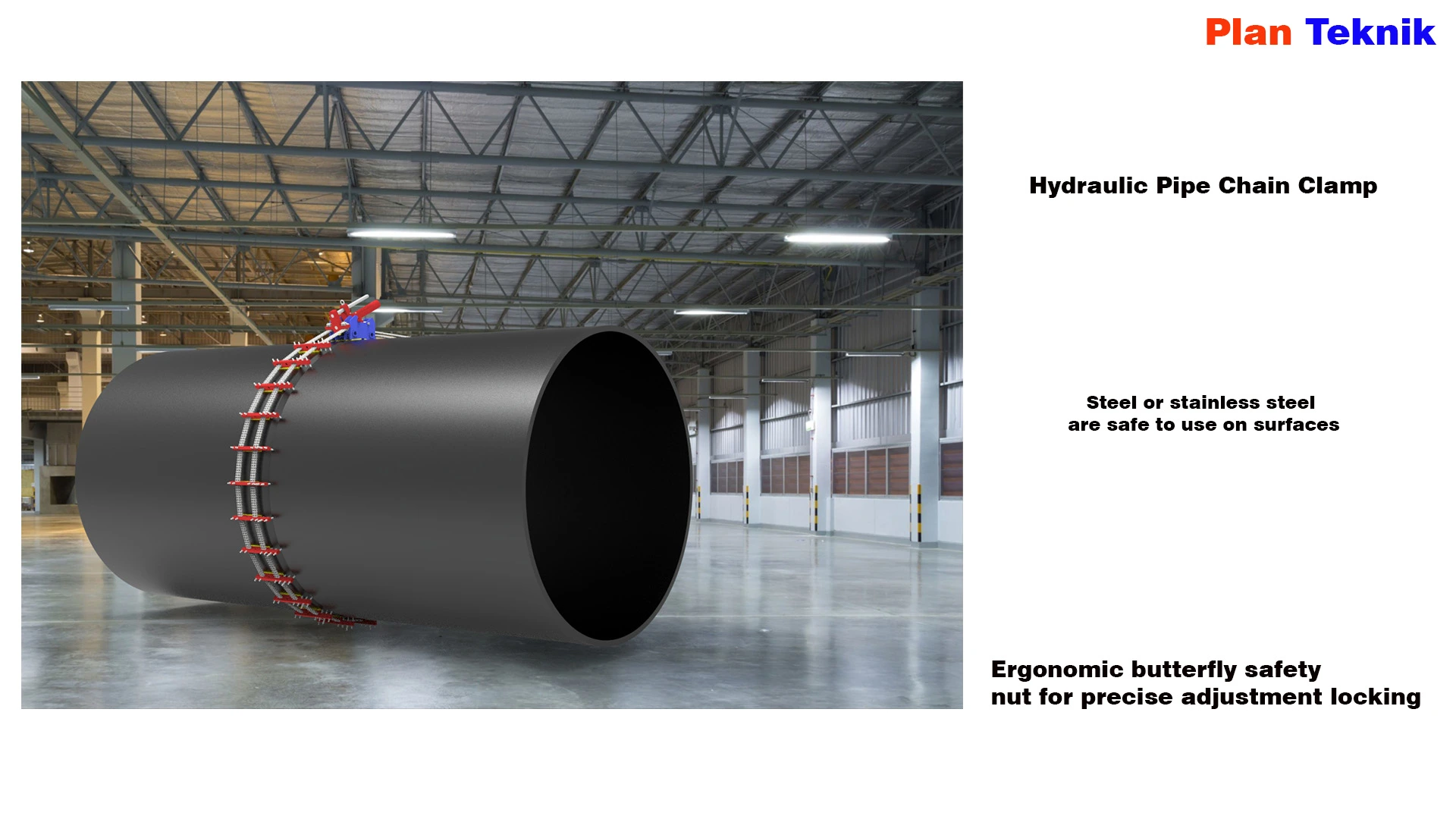

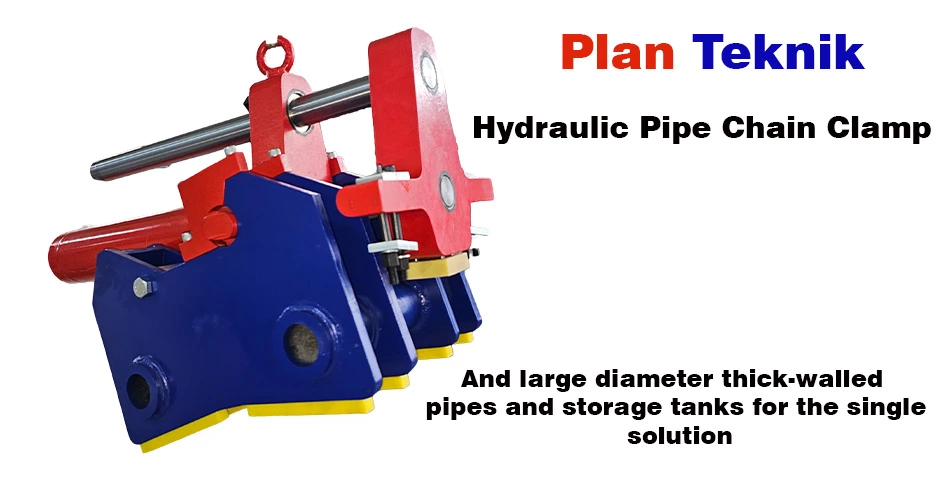

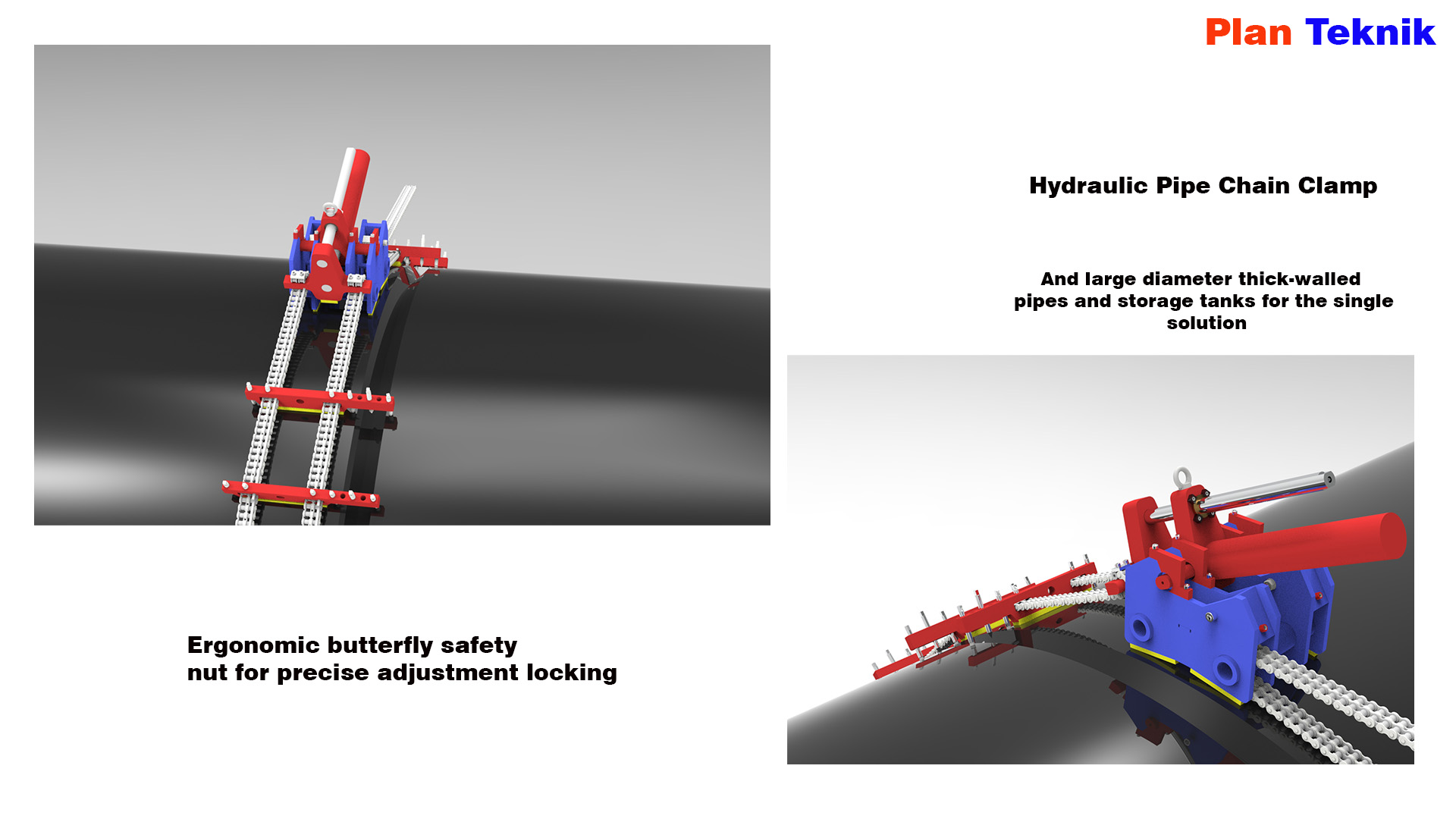

Hydraulic chain clamp strength varies according to different force models.

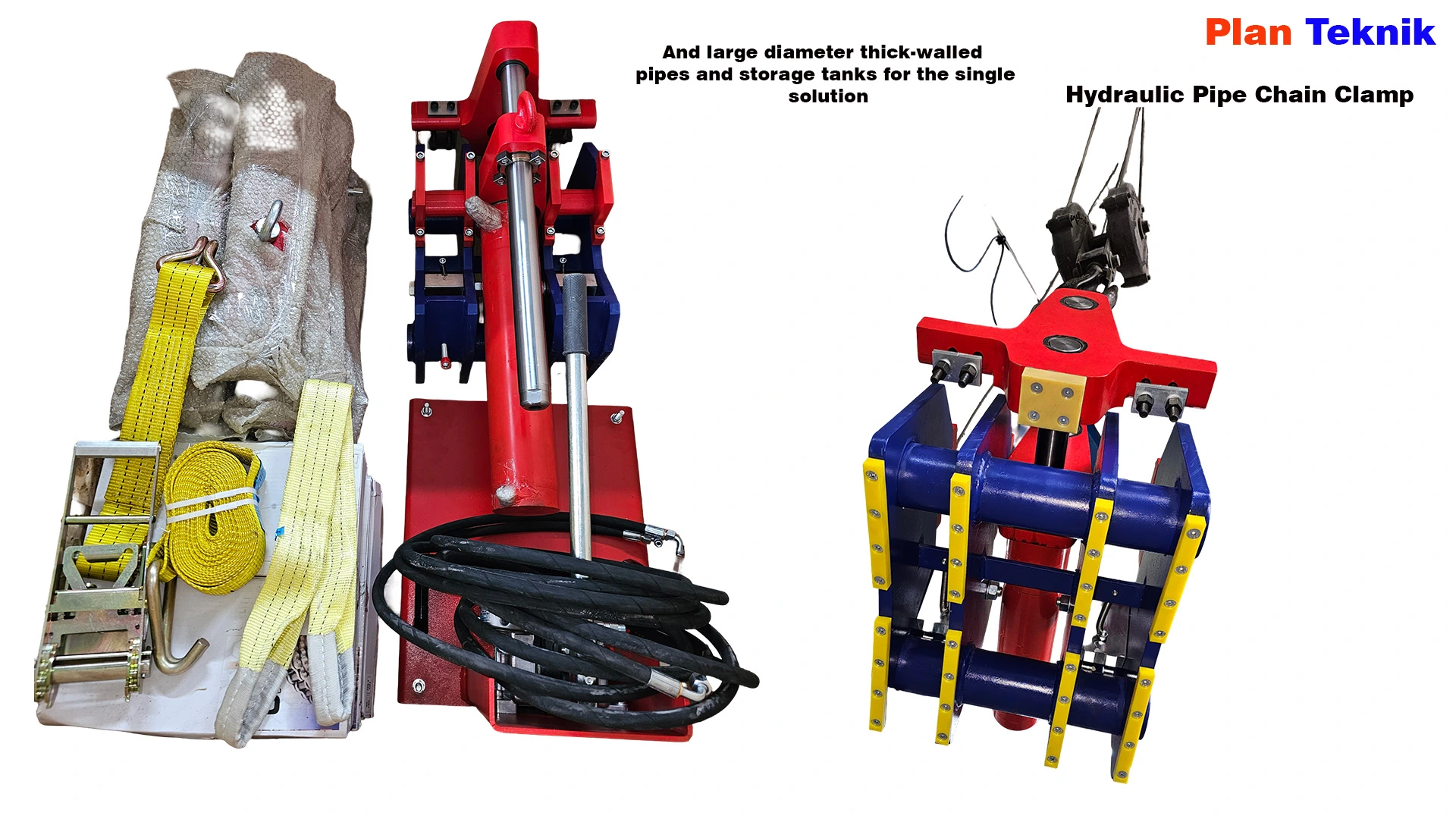

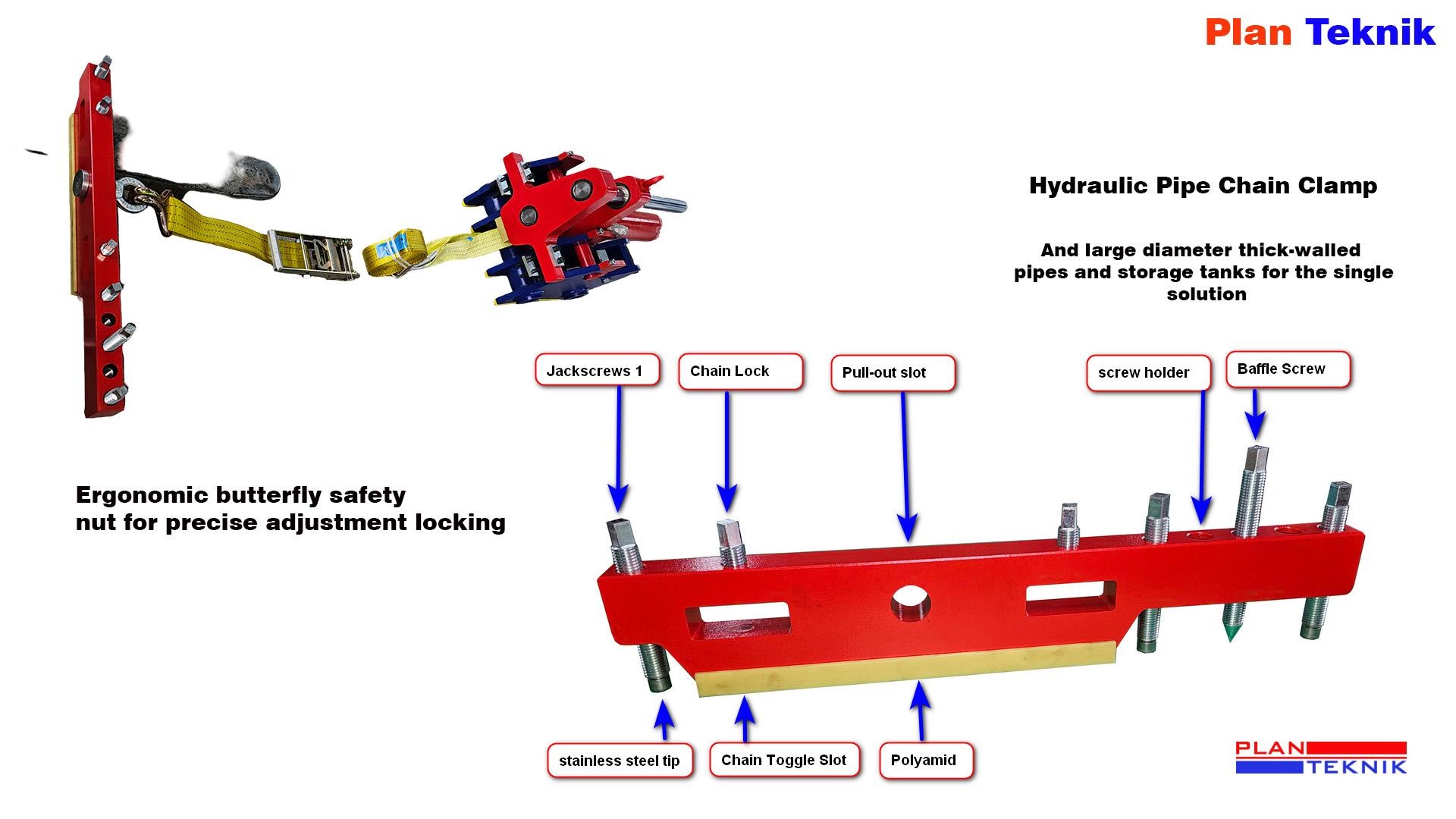

Main body lower body
Chain tensioning hydraulic cylinder chain tensioner
Hydraulic Manual Power Unit.
Hydraulic power transmission hose.
Pressure shoes for workpiece holder
Allen wrench and force tube
Spare parts are available.
Our products are manufactured using smart laser and CNC technology.
Coating and coloring of our products
Our products are galvanized to a thickness of 40-60 microns.
Our products are colored with electrostatic powder coating, which is 80-120 microns thick.
Our products are guarantyd for two years.
