TECHNICAL DETAILS
Product Pipe size
mm.		 Pipe size
inch		 Force
 Kn.		 Cube
m3		 Control system Pipe
Contact		 Number of shoes Package sizes Kg.
H B L
MIBK 152 152,00 6   0,3 Manual Steel 4x2
MIBK 203 203,00 8   0,4 Manual Steel 4x2
MIBK 254 254,00 10   0,4 Manual Steel 6x2
MIBK 323 Ø 323,90 12''   0,45 Manual Steel 8x2
MIBKD 355 Ø 323,90  - Ø 355,60  12'' -  14'' 405 0,5 Manual Steel 8x2
MIBK 355 Ø 355.60 14'' 405 0,5 Manual Steel 8x2
MIBK 406 Ø 406,40  16'' 960 0,6 Manual Steel 8x2
MIBKD 457 Ø 406,40 - Ø 457,20 16'' - 18'' 960 0,6 Manual Steel 8x2
MIBK 457 Ø 457,20 18'' 960 0,6 Manual Steel 8x2

Manuel Internal Pipe Clamp

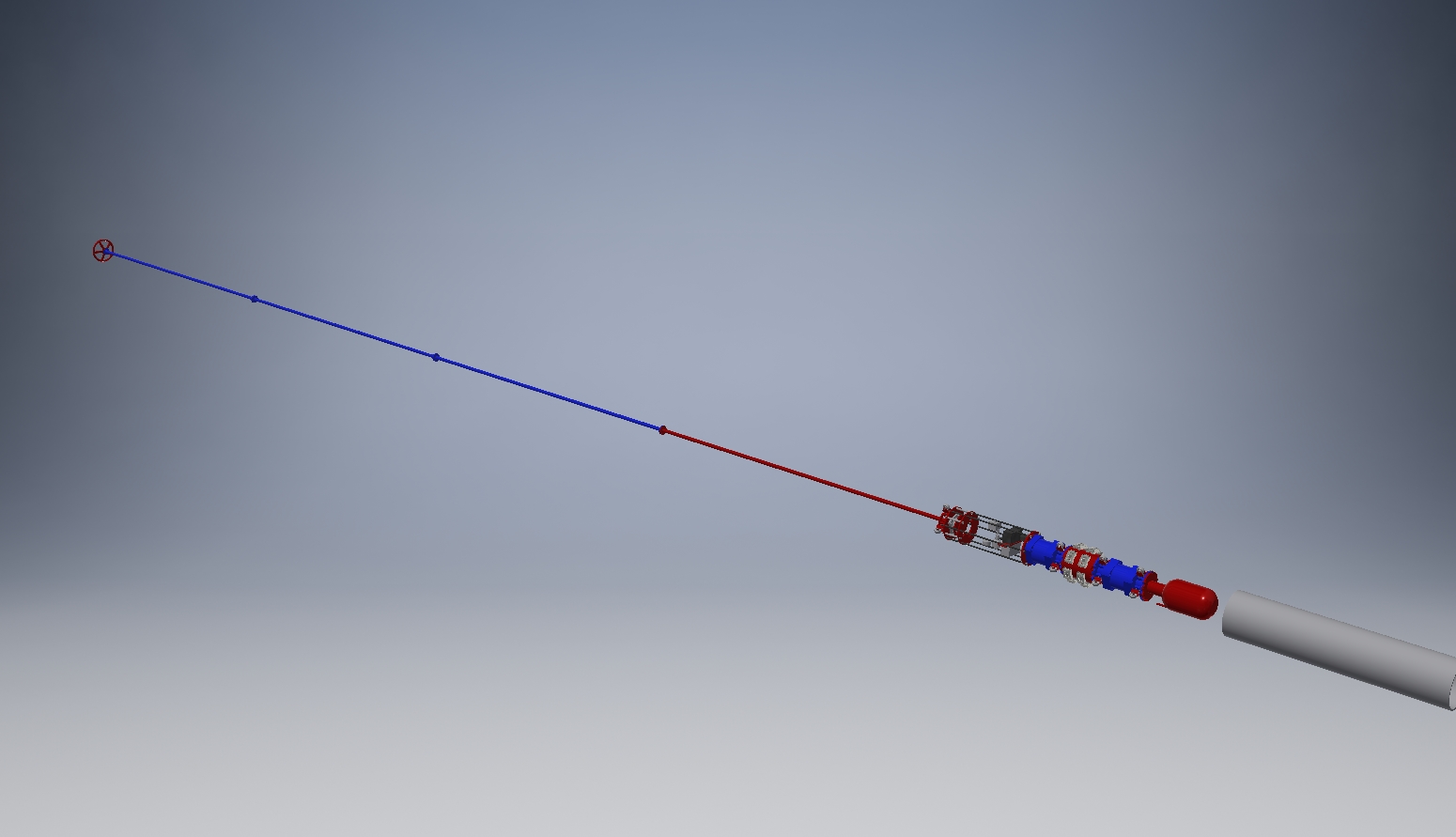

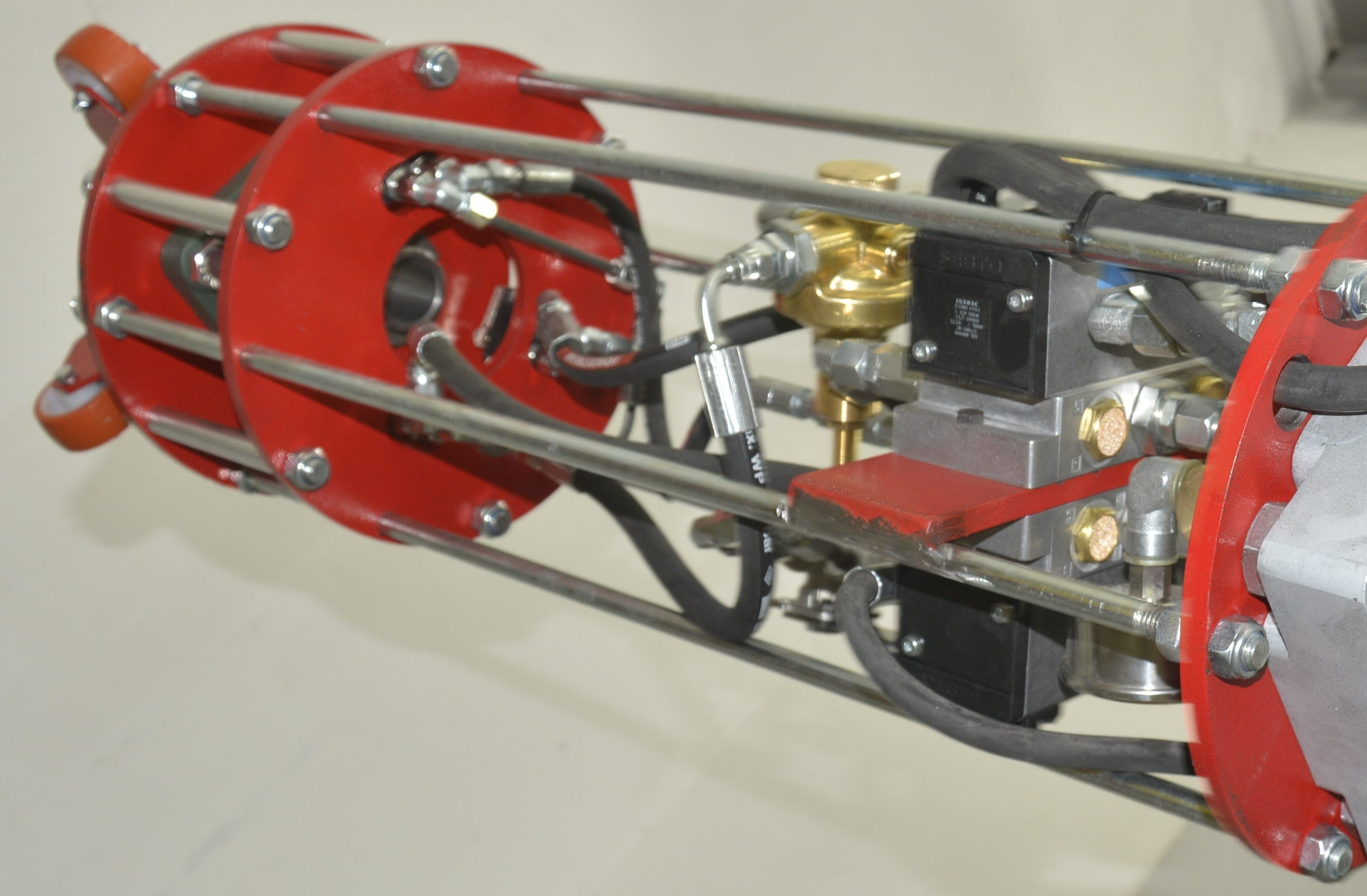

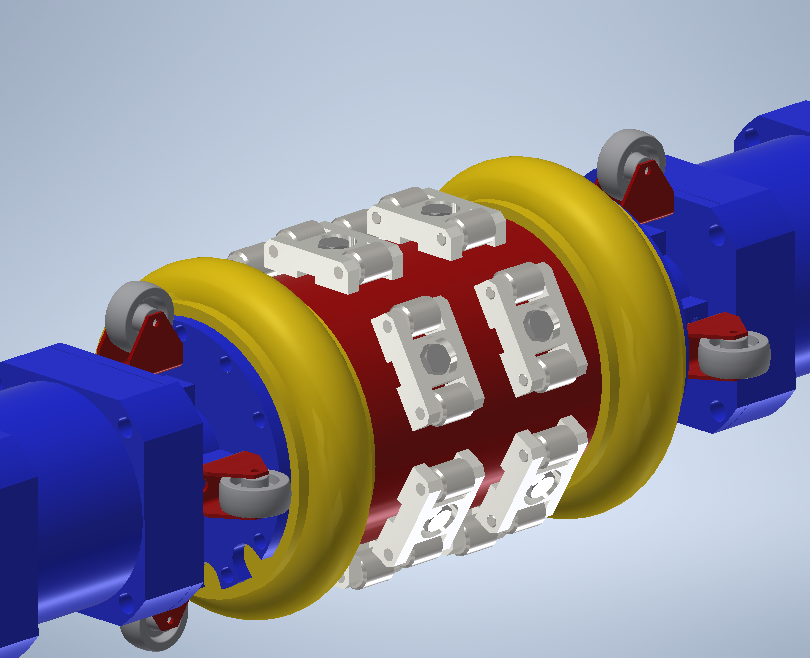

  1. The mechanical internal pipe clamp is an outward opening mechanism designed to apply a radial force through the pipe.
  2. During the welding of the pipe; it allows the two pipe ends to be connected, aligned and the pipes are held in the same axis.
  3. This mechanism is consists of two independent force mechanisms driven by two double acting pistons.
  4. The internal radial force given to the cylinders creates a force against the outside which allows the mechanism to move radially in a linear manner and the alignment is formed.
  5. This clamp makes its movement in the pipe manually.
  6. Clamps can be used to lay thousands of kilometers of pipelines even in the most difficult terrain.
  7. All models can operate on terrain slopes and special production is made for different terrain conditions.
  8. These models are suitable for pipes that which pipe thickness is up to 10mm.
  9.  This system works with pneumatic air pressure.
  10. Our internal clamps can be pneumatic or hydraulic. (Hydraulic power unit is outside the clamp and can be controlled )
  11. Internal clamps can be produced with purging arrangement.
