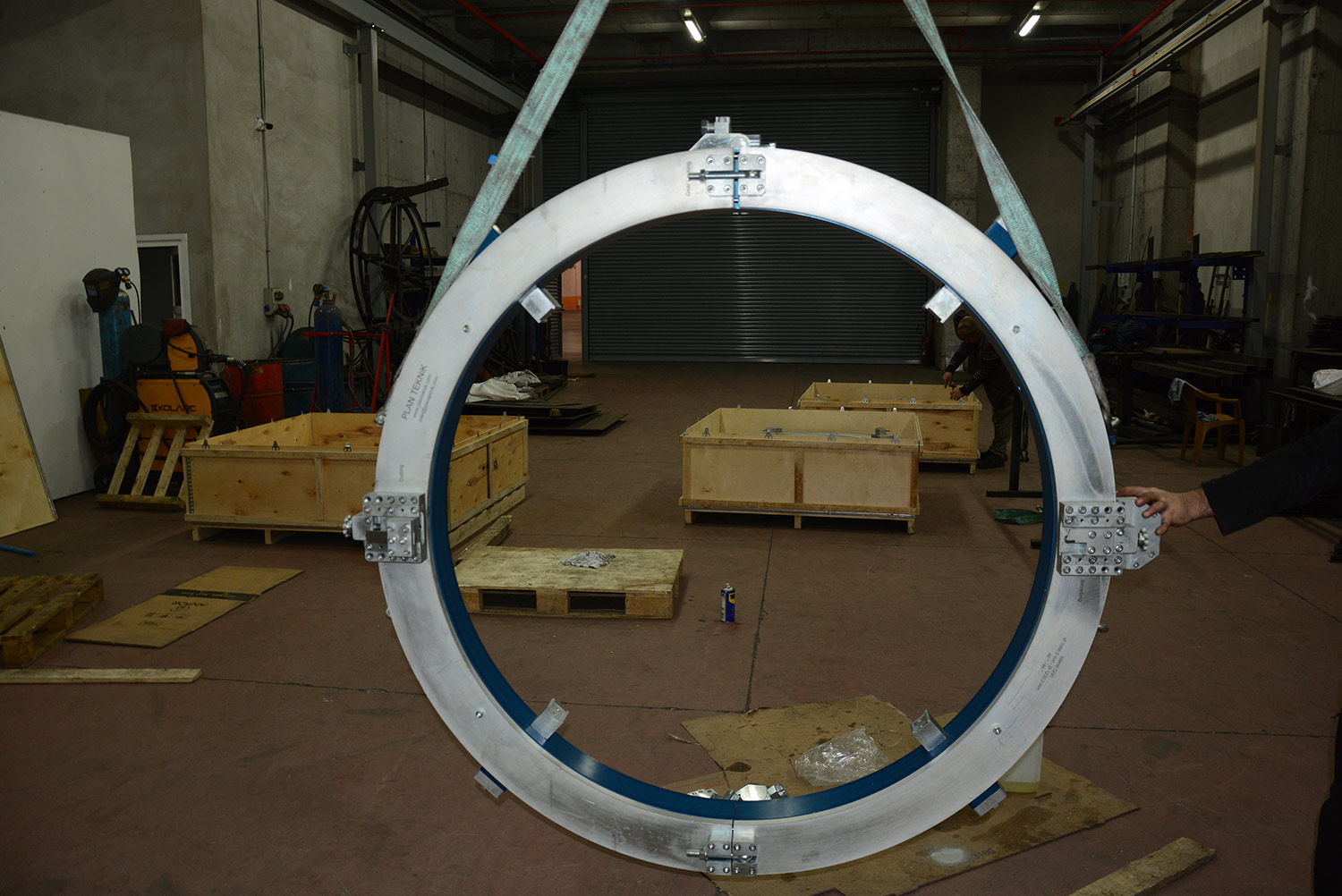

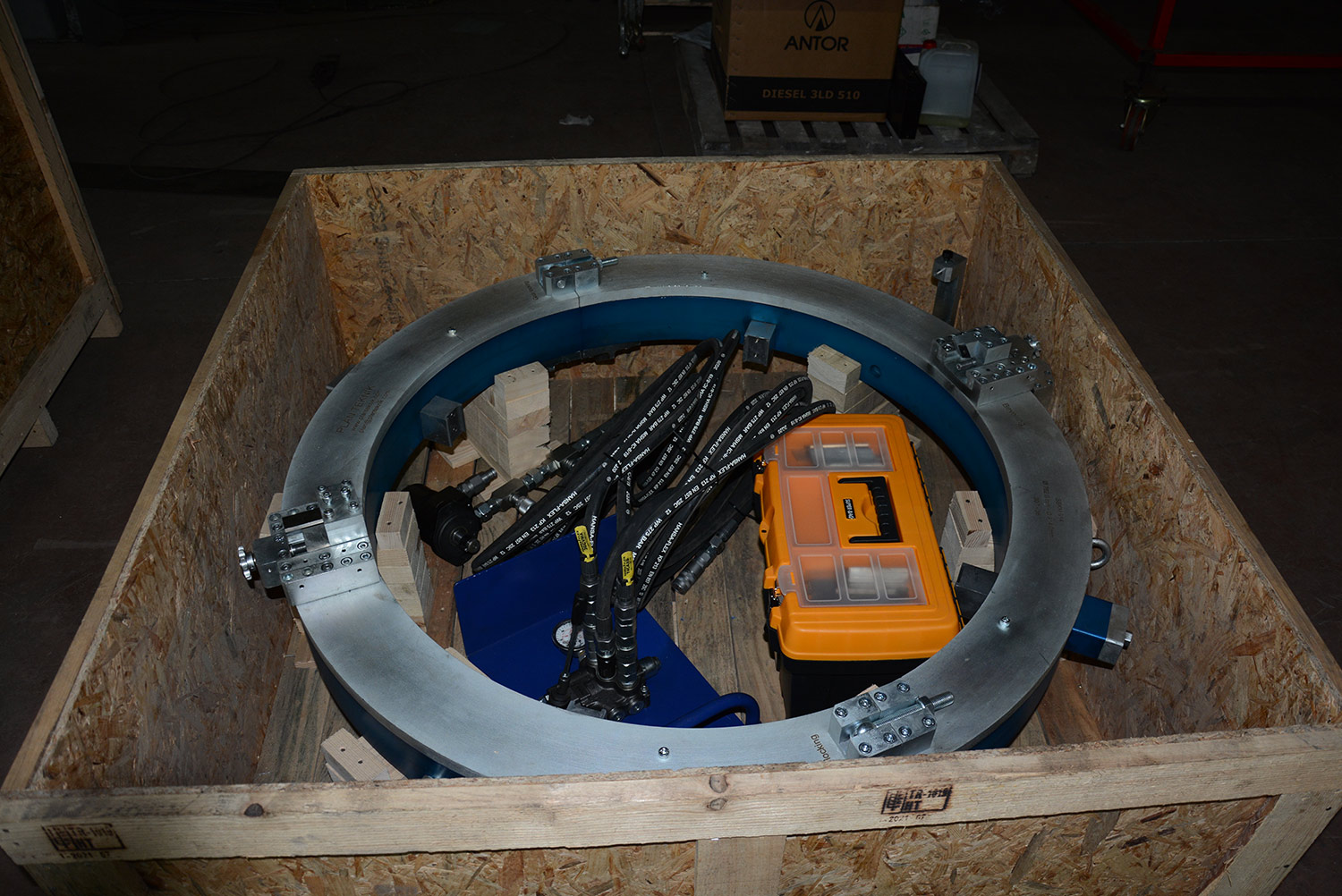

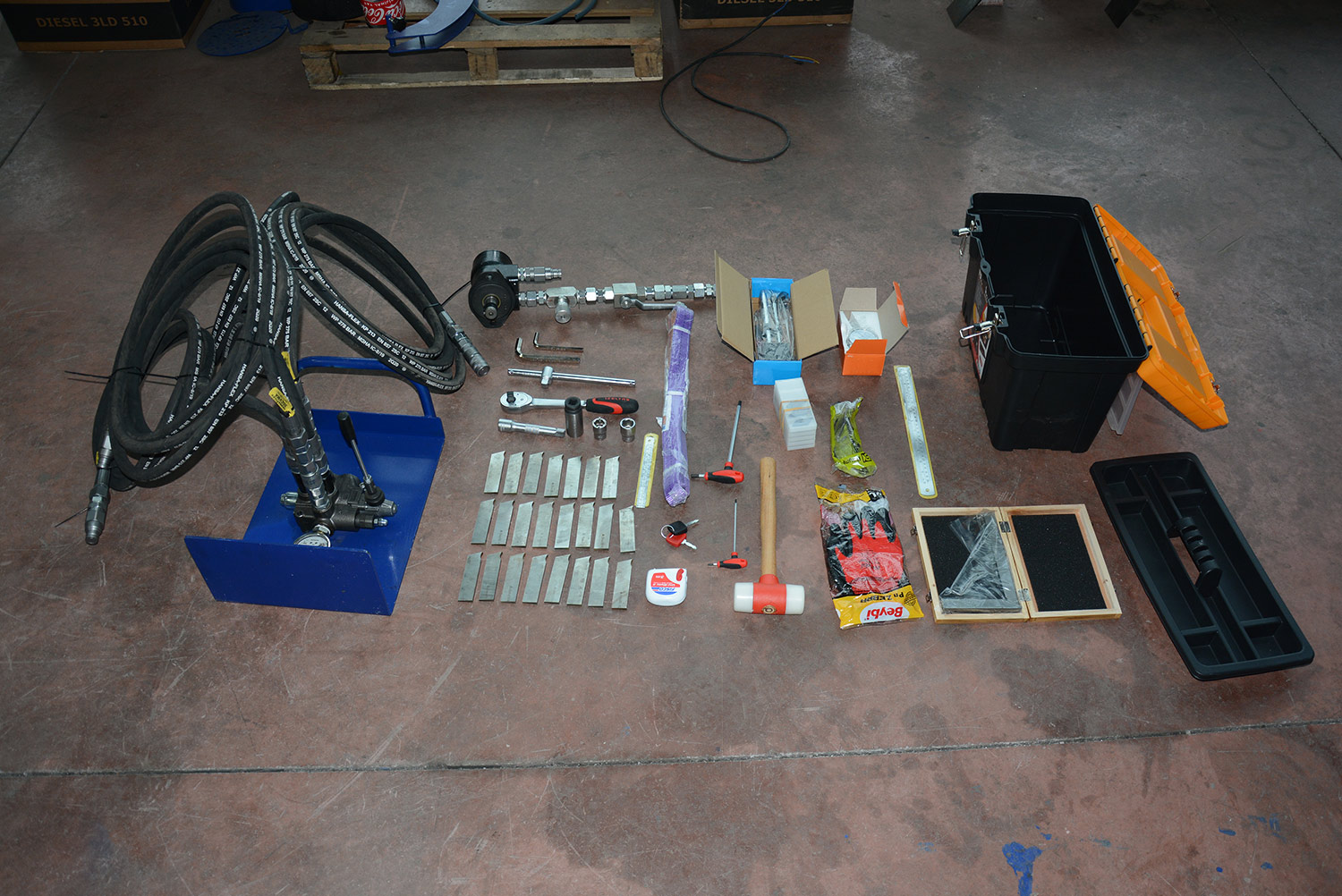

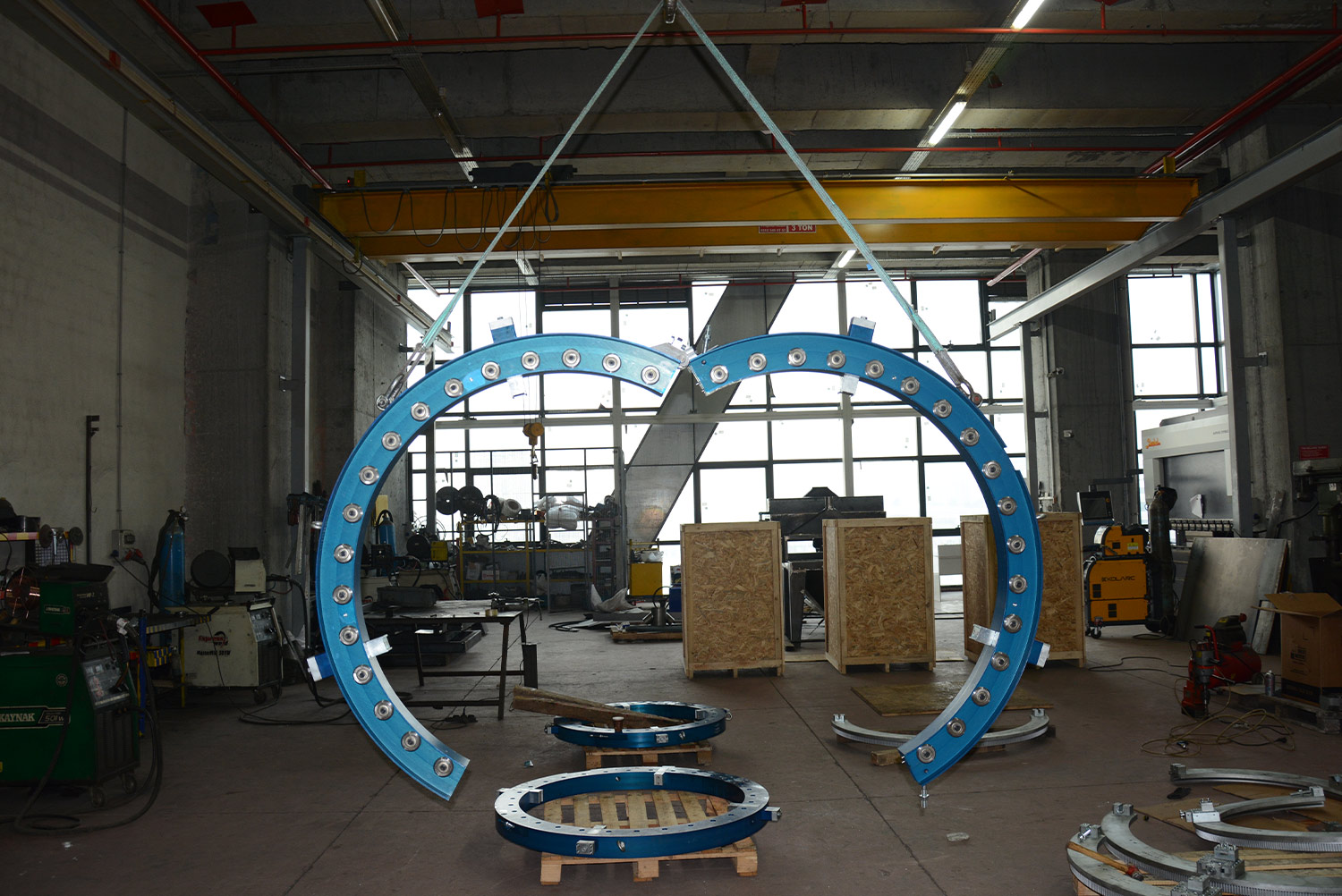

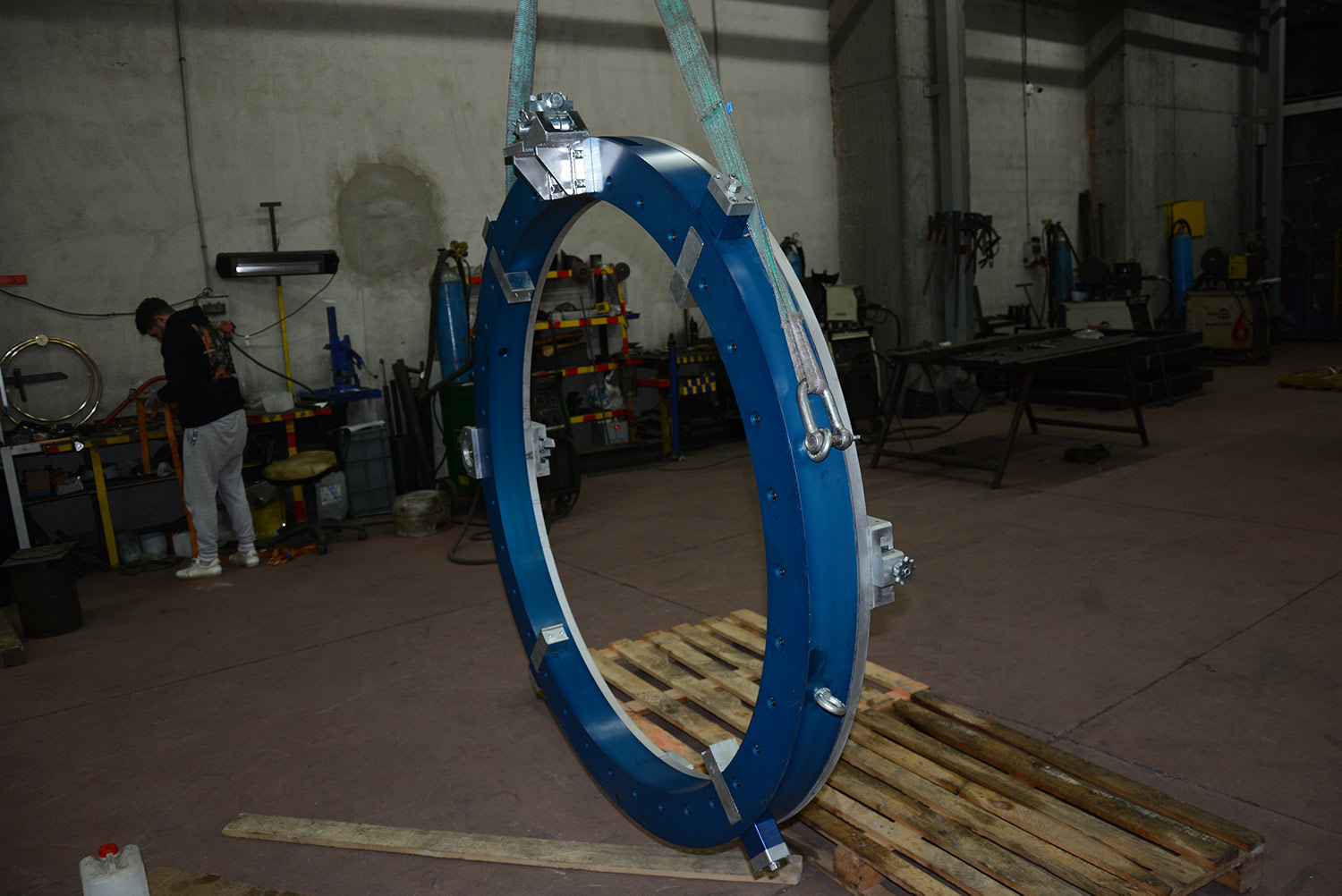

Pipe Cutting and Bevelling Machine

Pipe Cutting and Bevelling Machine

Product Order

Mon - Fri: 08:30 - 18:00
Pipe Cutting and Bevelling Machine
Pipe Cutting and Bevelling Machine
Pipe Cutting and Bevelling Machine
Pipe Cutting and Bevelling Machine
Pipe Cutting and Bevelling Machine
Pipe Cutting and Bevelling Machine
Pipe Cutting and Bevelling Machine
Pipe Cutting and Bevelling Machine
Pipe Cutting and Bevelling Machine
Pipe Cutting and Bevelling Machine
Pipe Cutting and Bevelling Machine
TECHNICAL DETAILS
Product Code Pipe Dia
Ø mm.		 Pipe Dia inch Steel Body Height Aluminium
 Body Height 		 Control Pipe Contact Number of Screw Number of shoes Dimension of Package  Net
Kg.
H B L
SBKM 168 50 168,00 2 6 - - Manuel Steel 4 4
SBKM 325 168,00 325,00 6 12 - - Manuel Steel 4 4
SBKM 377 219,00 377,00 8 14 - - Manuel Steel 4 4
SBKM 426 273,00 426,00 10 16 - - Manuel Steel 4 4
SBKM 457 300,00 457,00 12 18 - - Manuel Steel 4 4
SBKM 508 355,00 508,00 14 20 - - Manuel Steel 4 4
SBKM 560 400,00 560,00 16 22 - - Manuel Steel 4 4
SBKM 610 457,00 610,00 18 24 - - Manuel Steel 4 4
SBKM 660 508,00 660,00 20 26 - - Manuel Steel 4 4
SBKM 715 550,00 715,00 22 28 - - Manuel Steel 4 4
SBKM 762 600,00 762,00 24 30 - - Manuel Steel 4 4
SBKM 813 660,00 813,00 26 32 - - Manuel Steel 4 4
SBKM 914 762,00 914,00 30 36 - - Manuel Steel 4 4
SBKM 1066 914,00 1.066,00 36 42 - - Manuel Steel 4 4
SBKM 1230 1.066,00 1.230,00 42 48 - - Manuel Steel 4 4

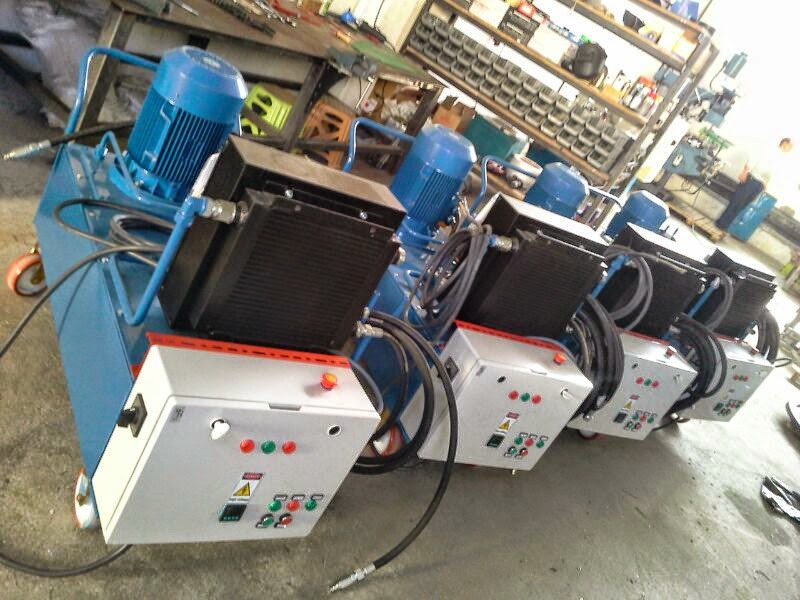

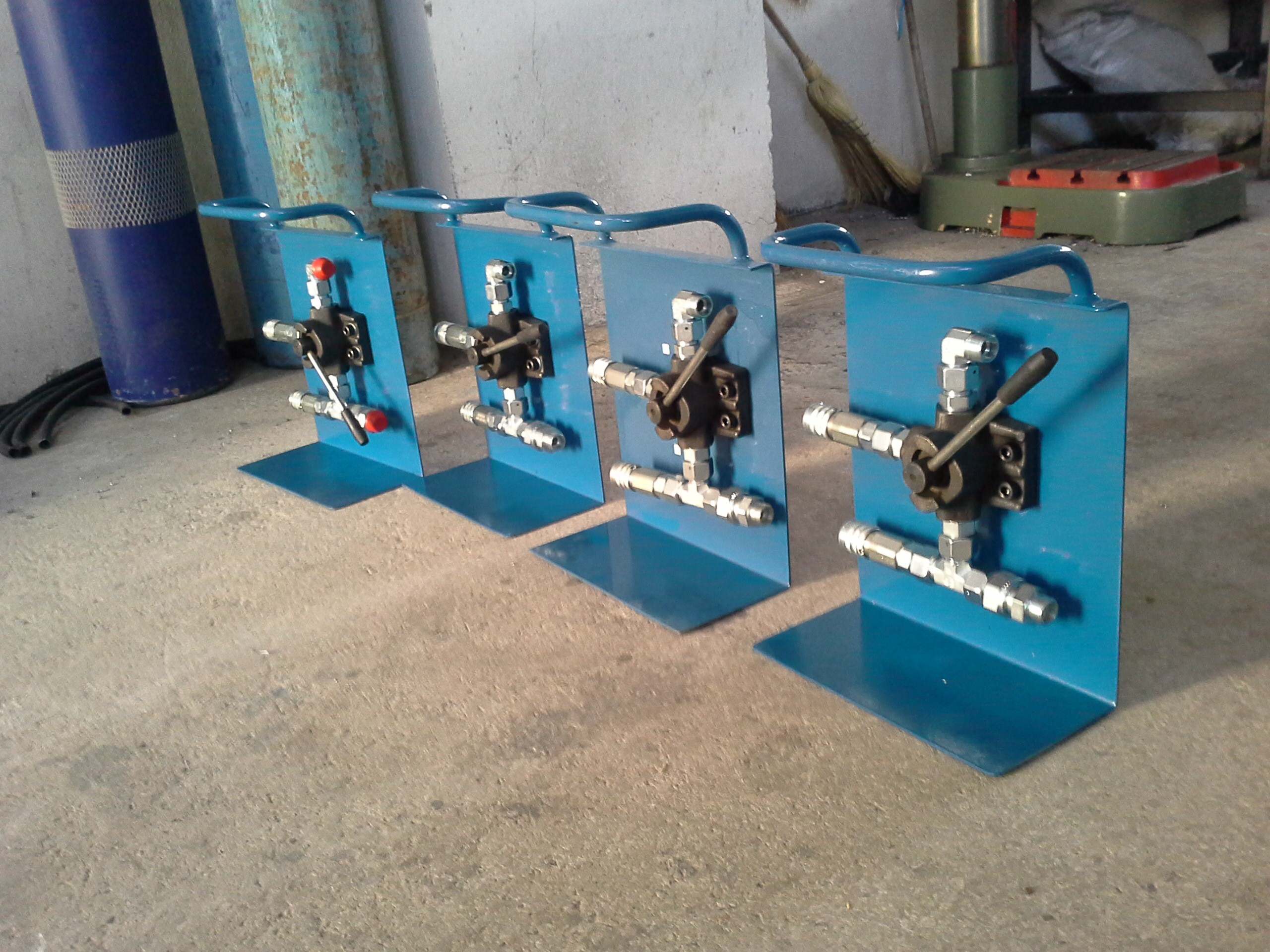

Pipe Cutting and Bevelling Machine

  1. This machine is a pipe cutting and beveling machine.

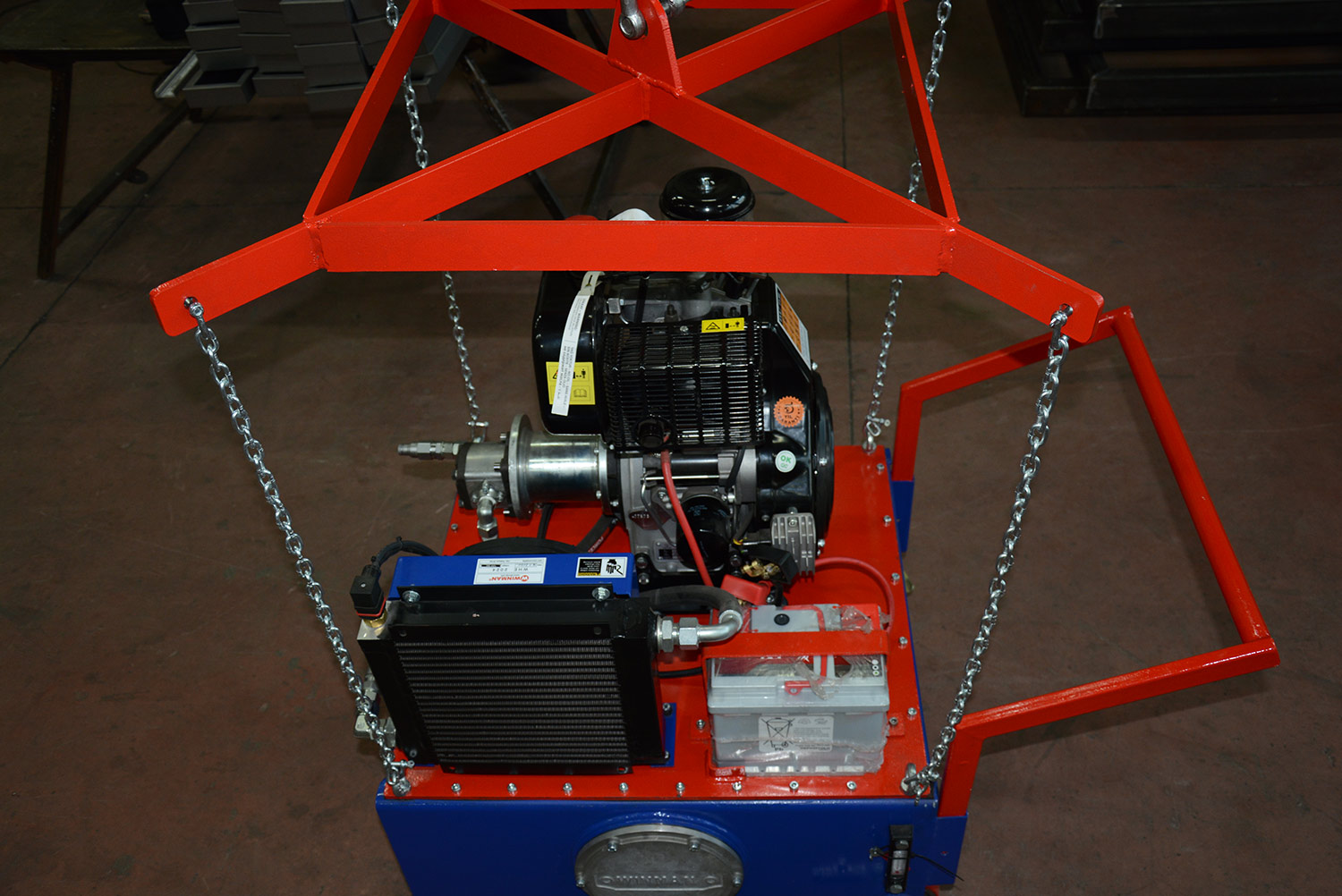

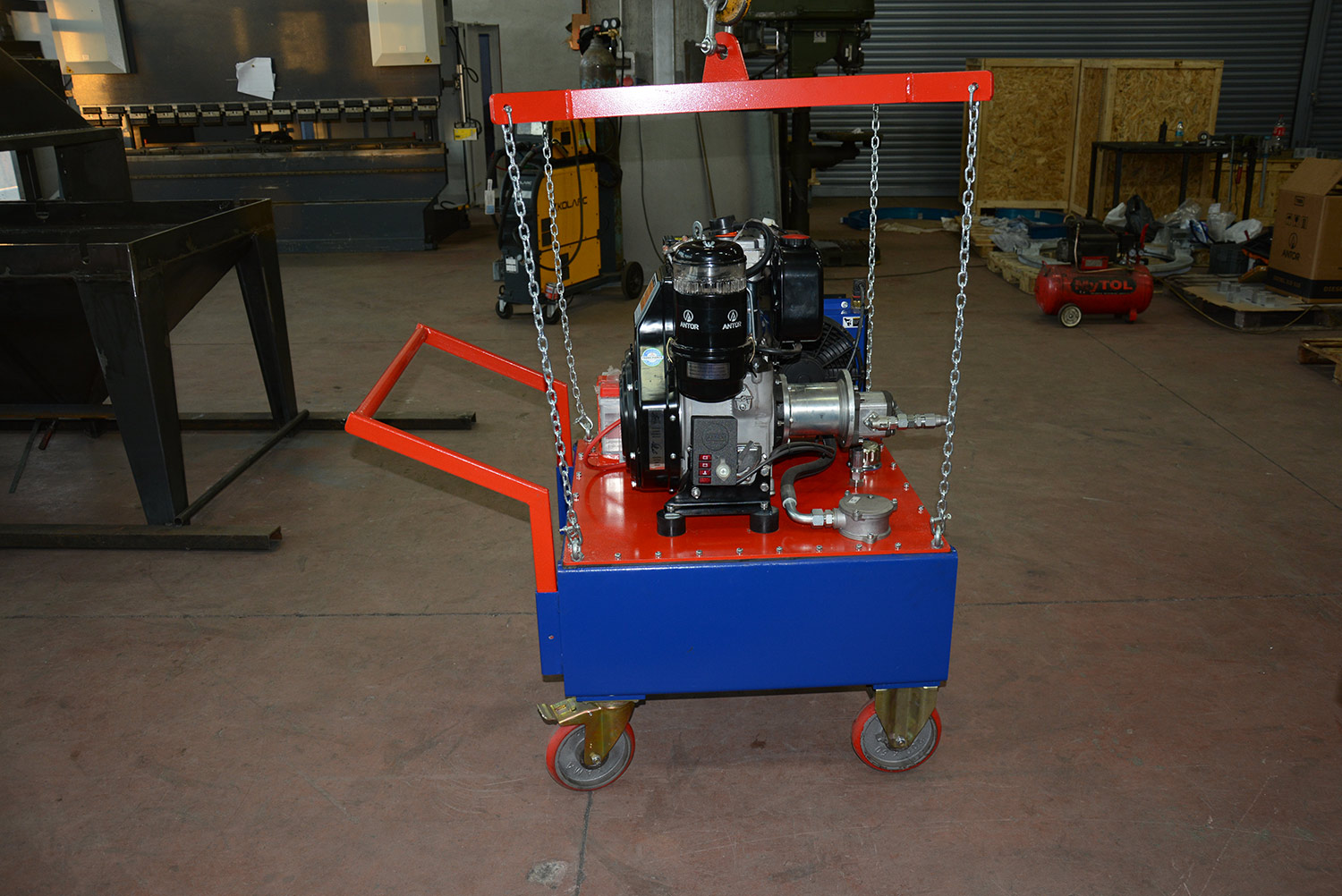

  2. It is a high performance hydraulic machine and it is very simple to use.
  3. Its speed can be adjustable according to wall thicknesses.
  4. It has a wide pipe range to work.
  5. It has a long life even in continuous process and operations.
  6. Mechanical structure is good and sensitivity is high.
  7. This machine is also suitable for cutting and beveling of pipes that which wall thickness are big.
  8. This machine is simple and easy to use. Remote control is available.
  9. Can perform the desired operation and can be fed automatically.
  10. Suitable for pipes that have diameter 25mm - 5000mm. For Cutting and beveling pipe wall thickness can be: 4.00mm-50.00mm
  11. It is safe for pipe cutting, beveling.
  12. Energy Supply is 220V AC-24V DC.
