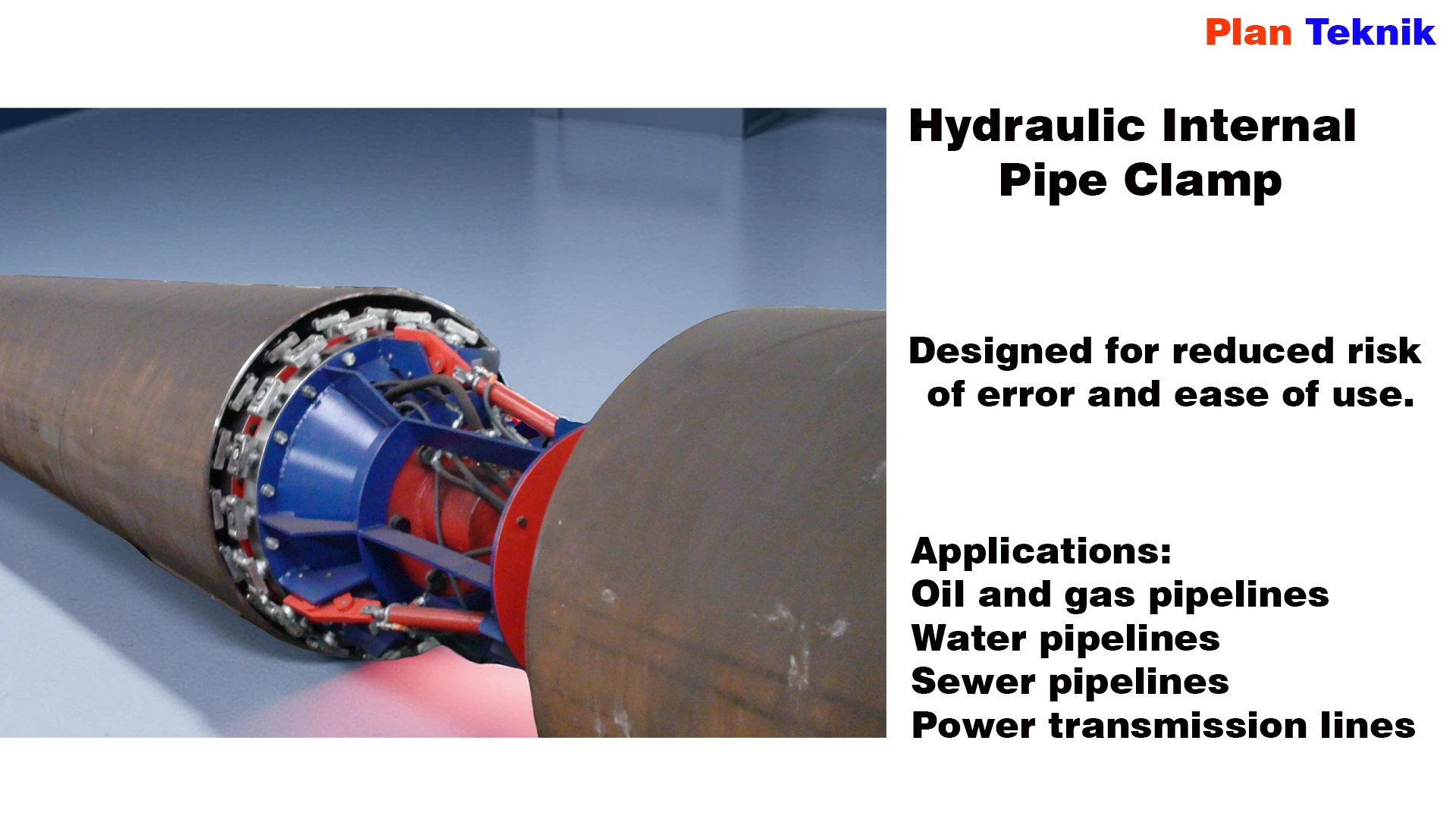

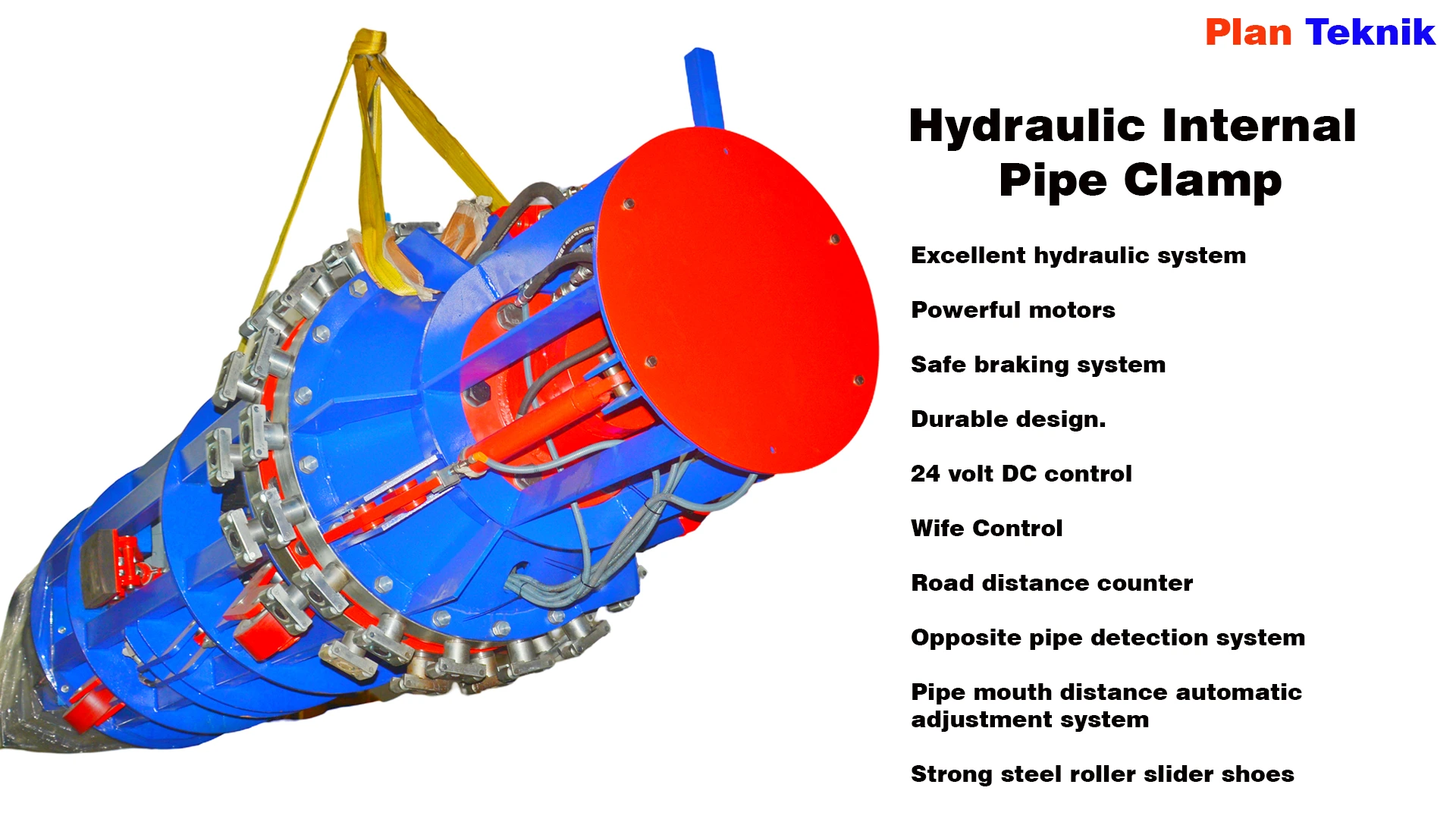

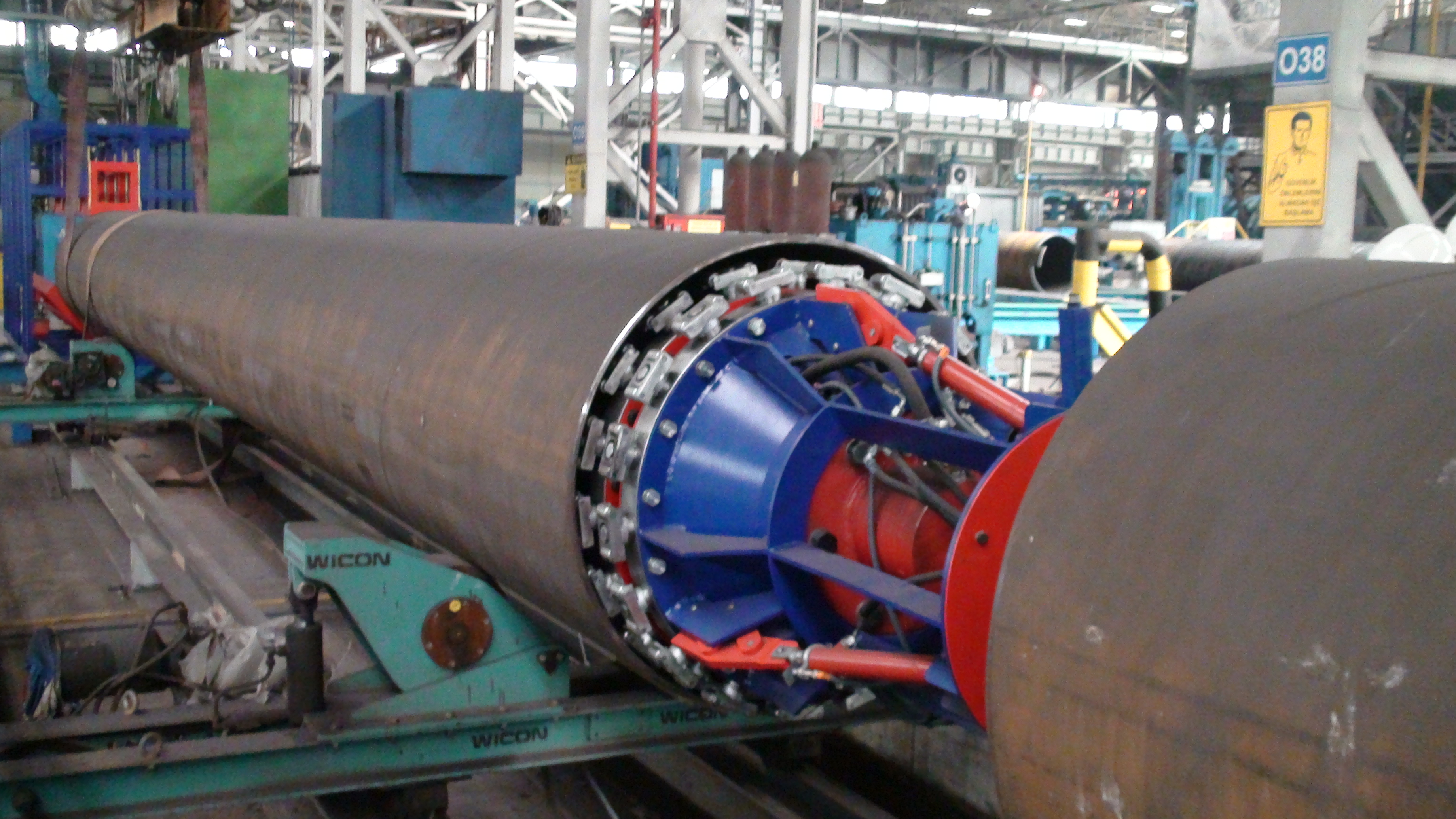

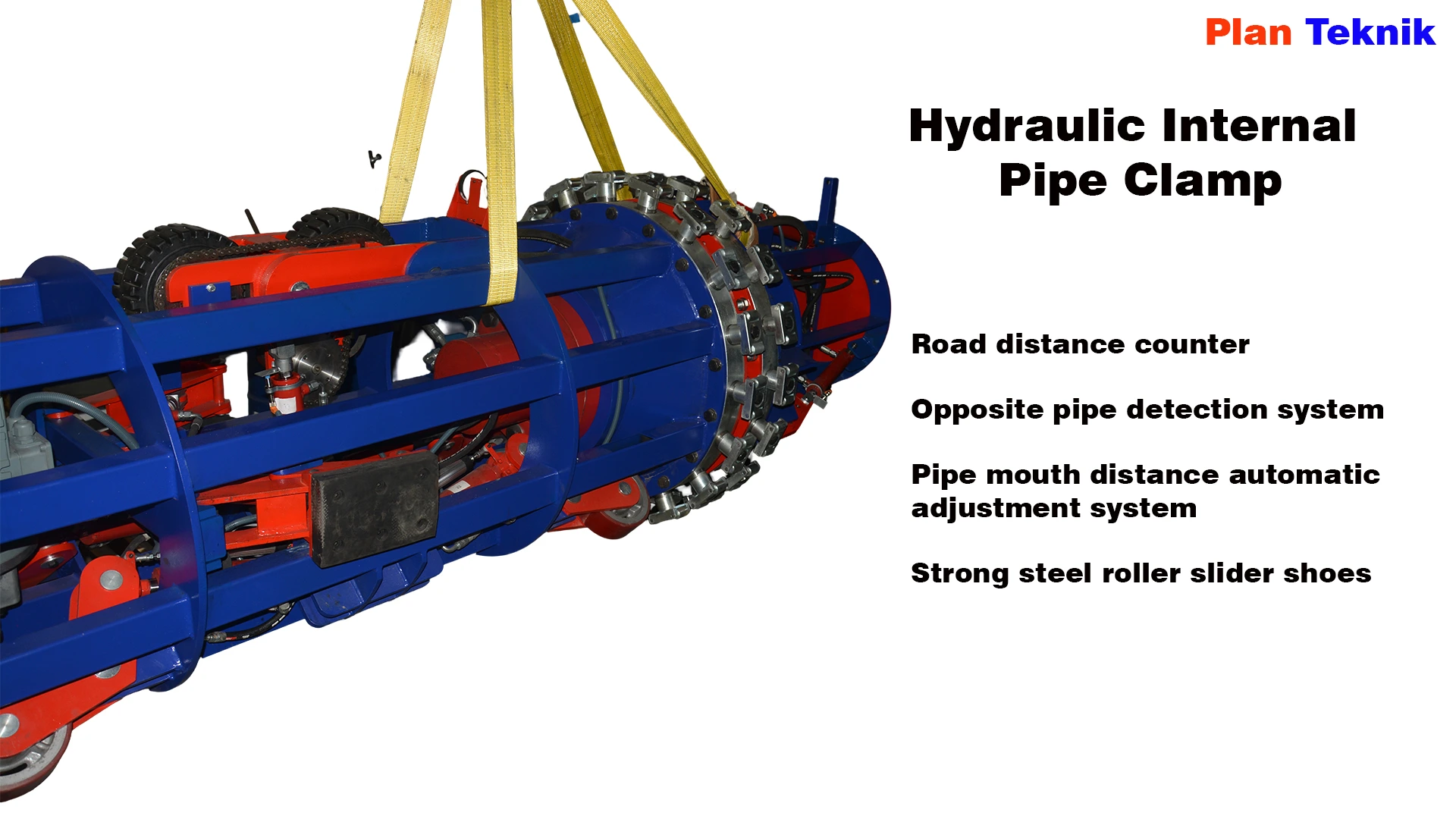

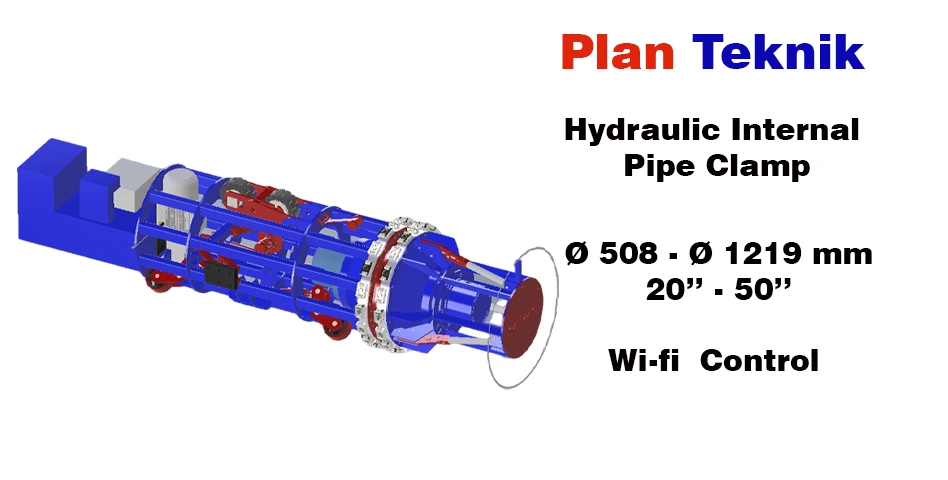

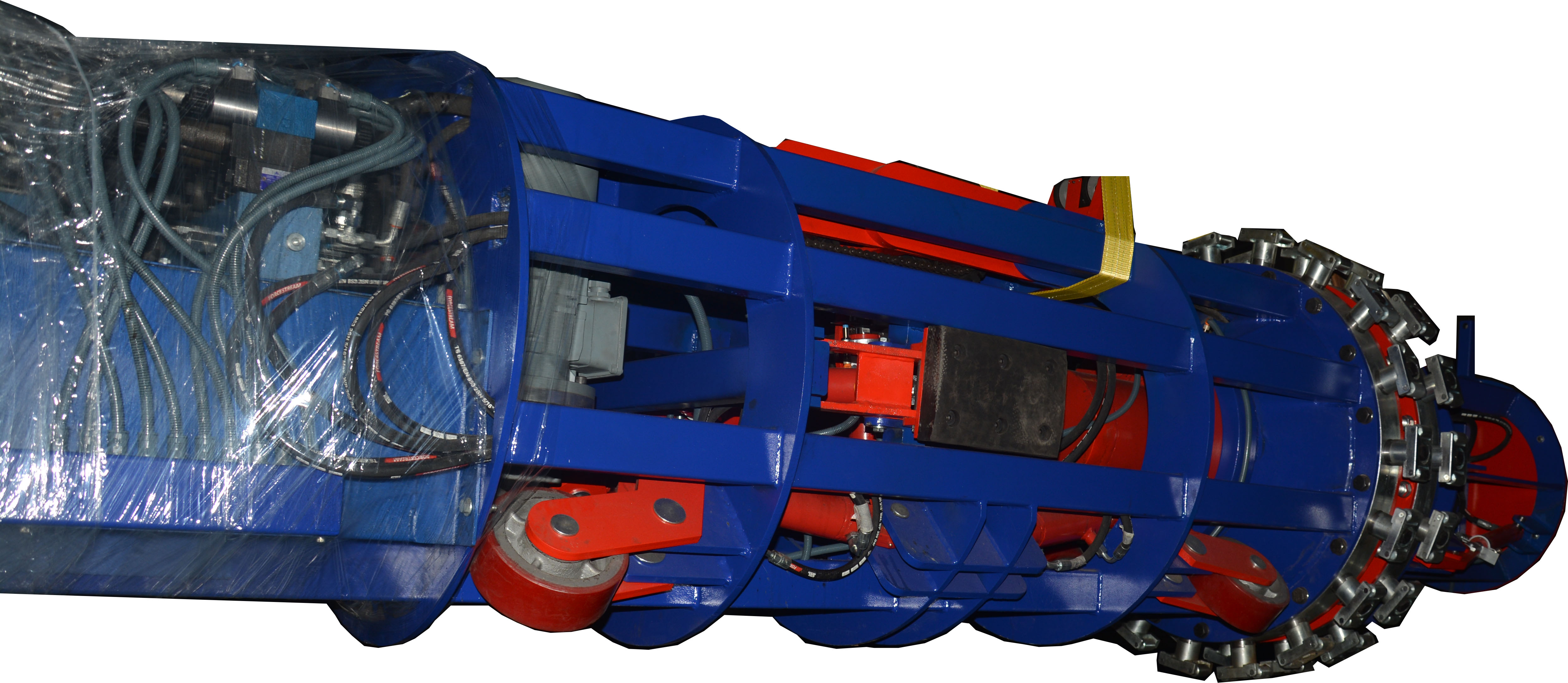

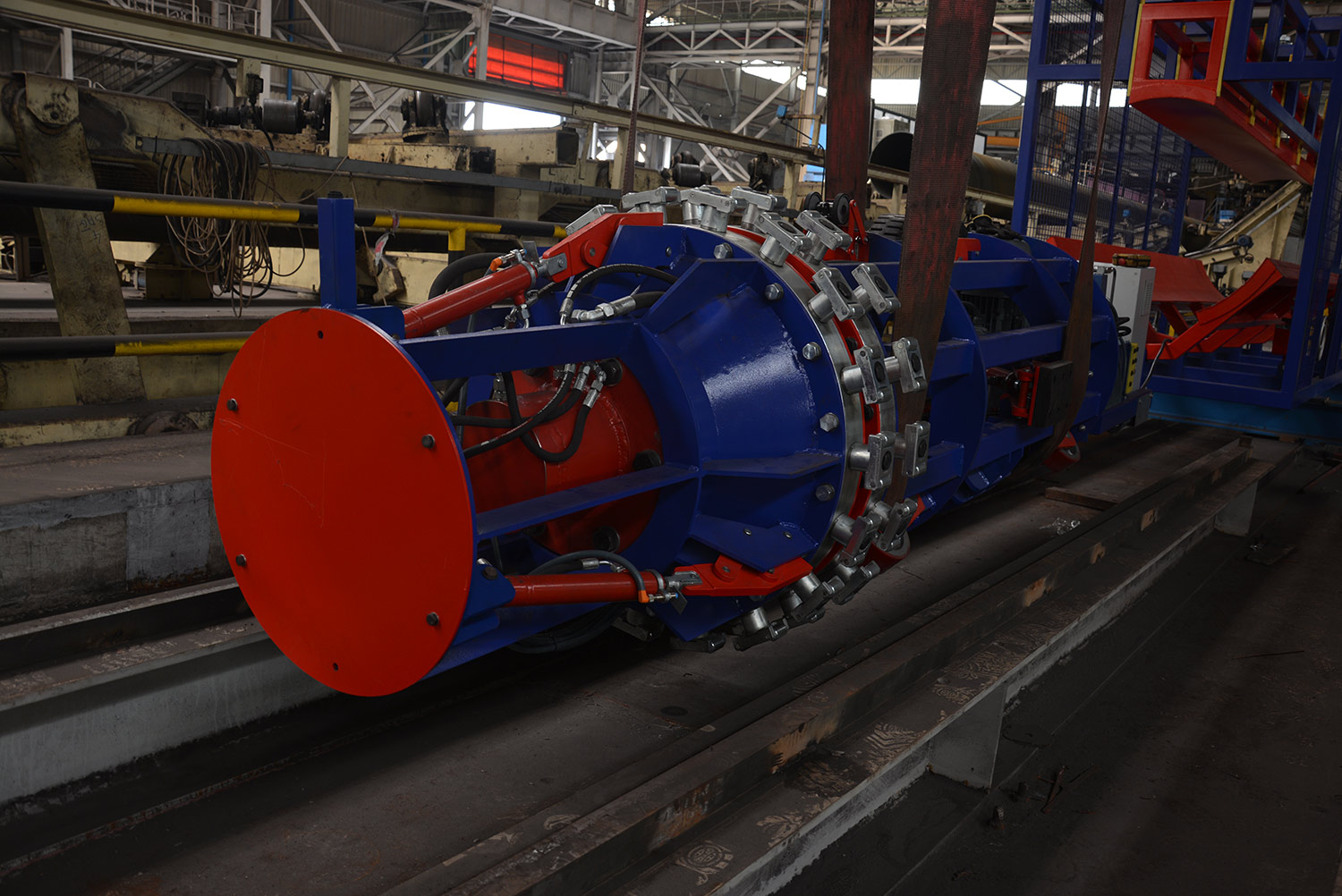

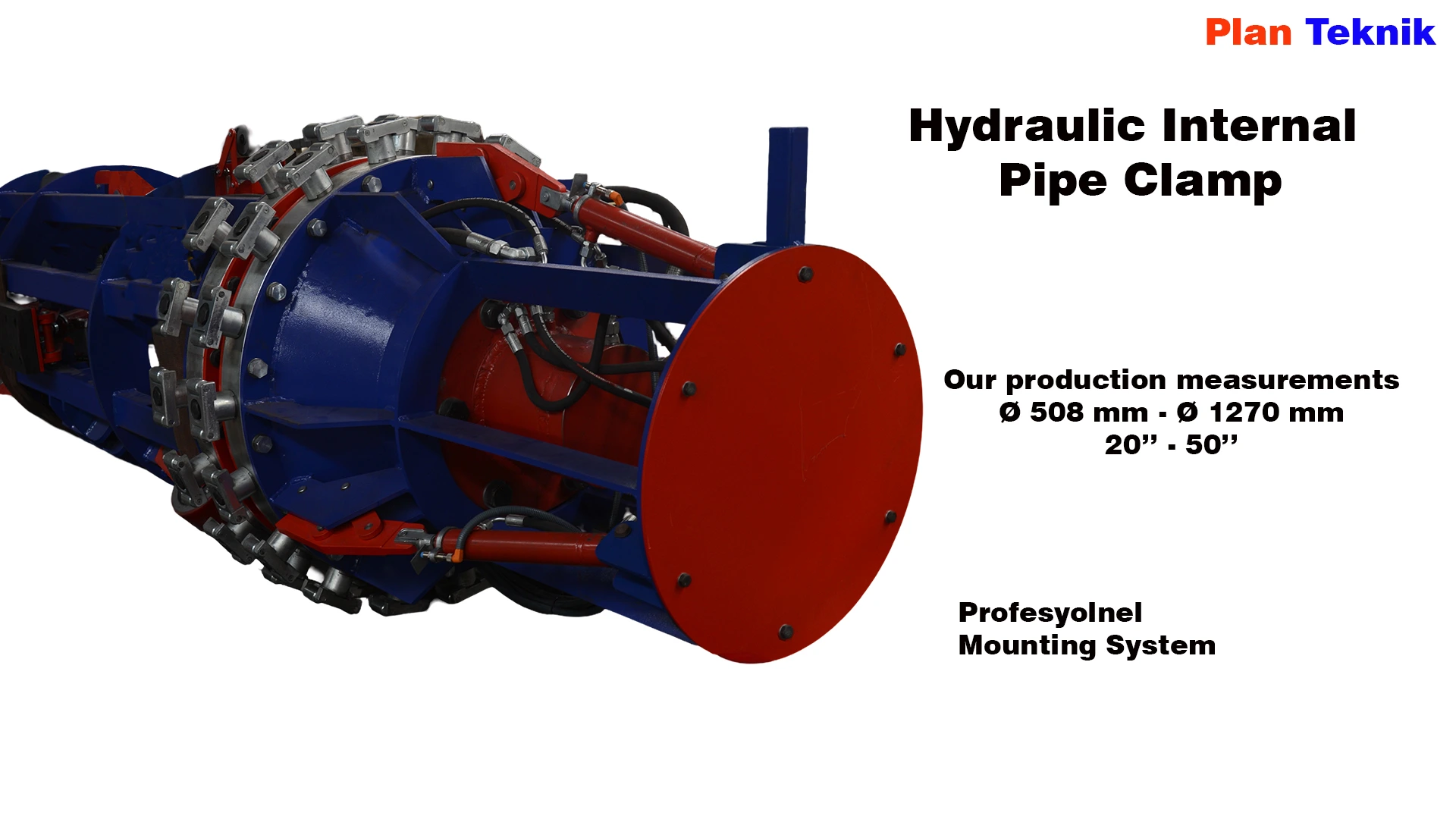

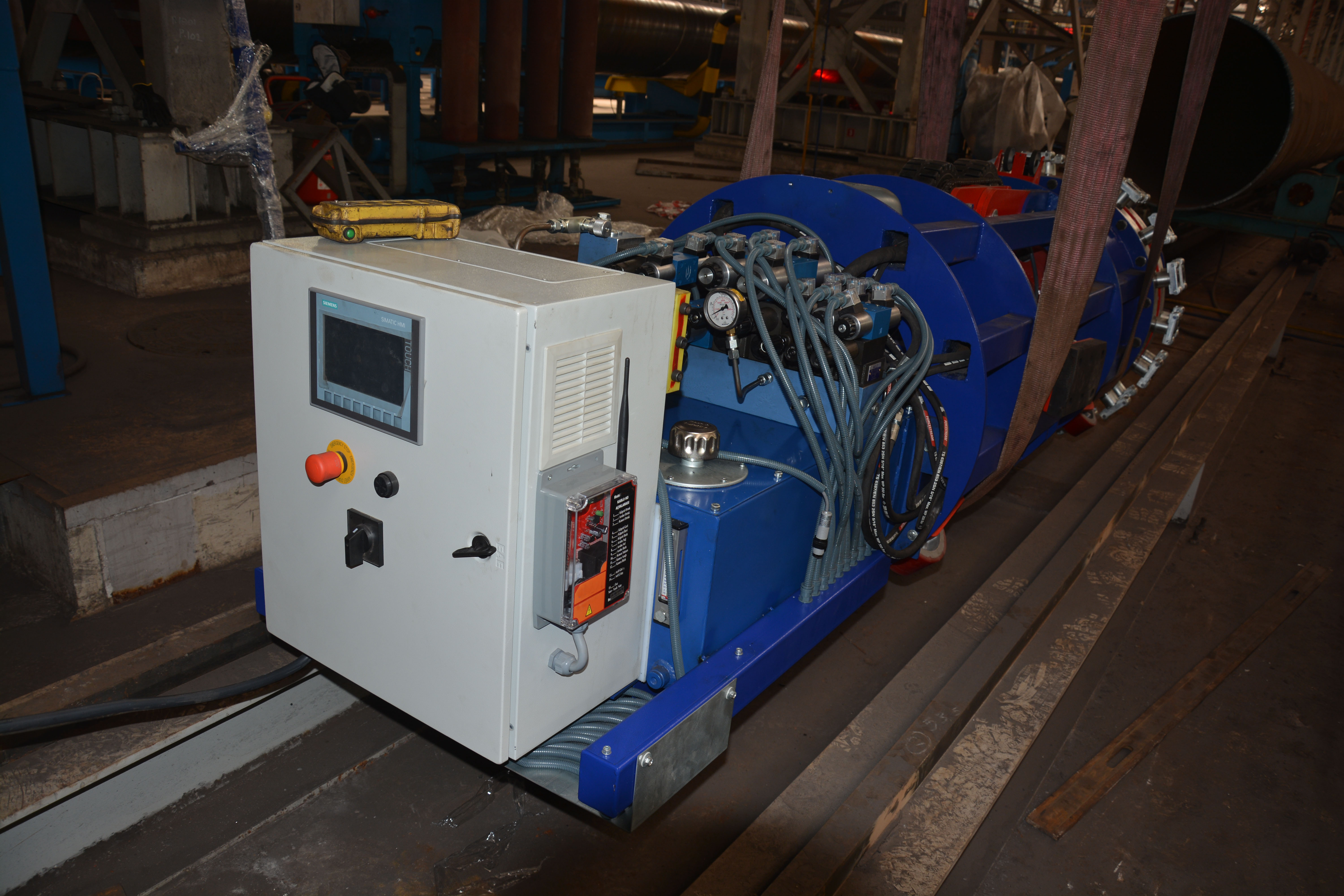

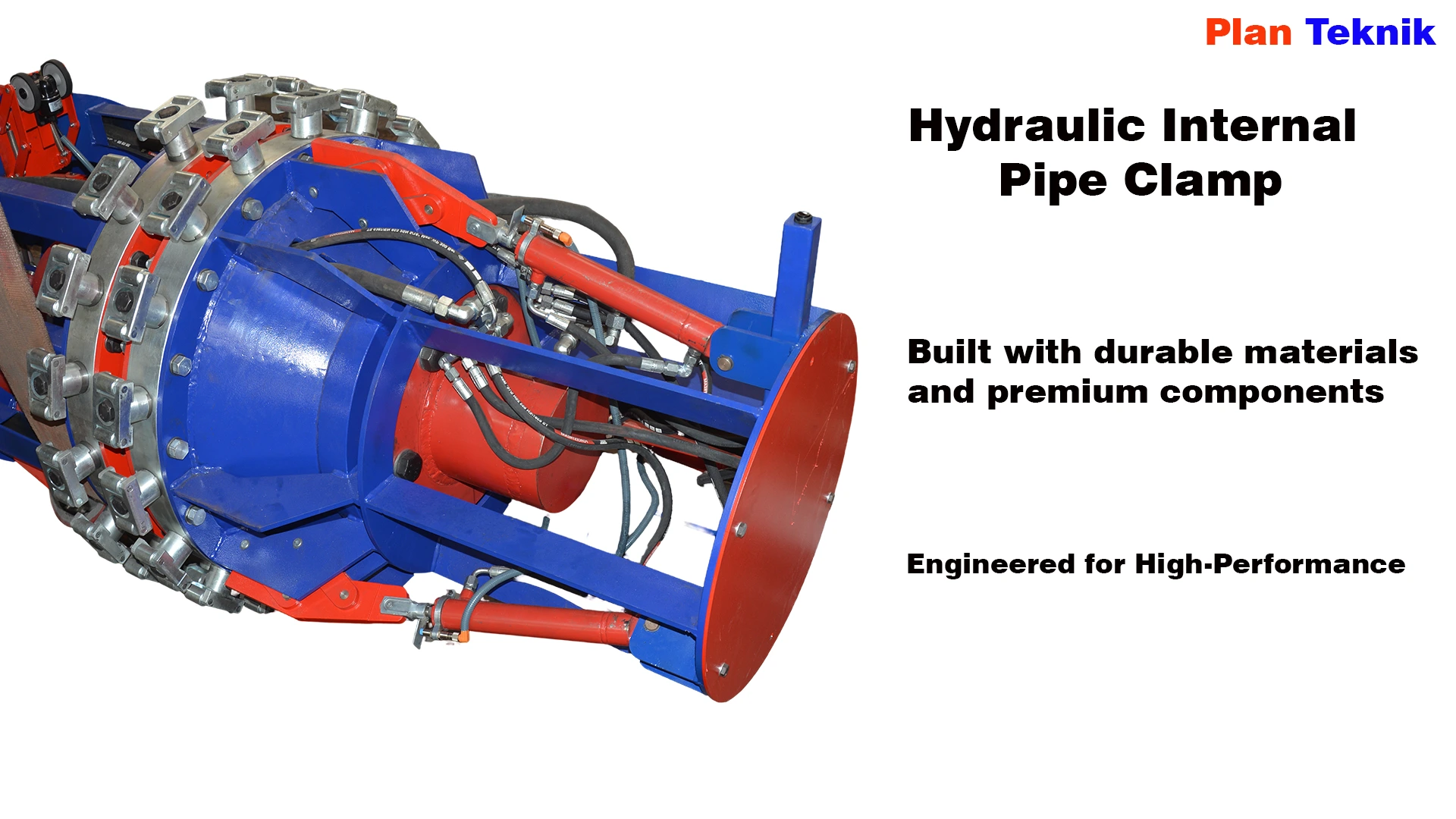

Hydraulic Internal Pipe Clamp

1. Hydraulic internal pipe clamp is an outward opening mechanism designed to apply a radial force out through the pipe.
2. During the welding of the pipe; it allows the two pipe ends to be connected, aligned and the pipes are held in the same axis.
3. The clamp has two independent force mechanisms actuated by two double acting pistons.
4. The internal radial force that given to the cylinders provides a force against the outside to provide a radial linear movement of the mechanism and then alignment is formed.
5. The hydraulic internal clamp does movement in the pipe Manual or with the motor movement.
6. Manually / automatically adjusts the brake pads to the inner walls of the pipe to stop movement of the internal clamp in the pipe.
7. Clamps can be used to lay thousands of kilometers of pipelines even in the most challenging terrain.
8. All models can operate in terrain slopes and special production is made for different terrain conditions.

These models are suitable for pipes that which pipe thickness is up to 28 mm.
